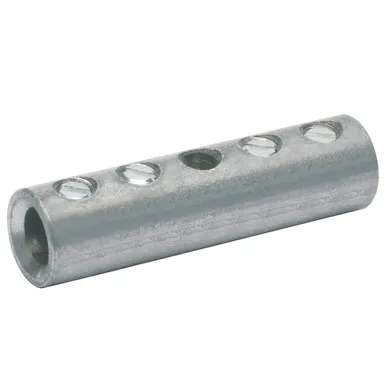

Features
- Simple processing due to fixed screws and solder hole
Material
- CuZn 40 Pb 2
- Screws: Steel to DIN 551
Surface
- Tin-plated to protect against corrosion
Assembly instruction
- A connection needs to be soldered
Material
Surface
Assembly instruction
| Cable type | Description |
|---|---|
 |
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |
| PART NO. | Nominal cross-section mm² | Dimensions mm | Number of grub screws z | Weight/100 pcs. ~kg | PU/pcs. | |||
|---|---|---|---|---|---|---|---|---|
| l | d1 | d4 | dia. q | |||||
| 551R | 6 | 25 | 3,5 | 7 | 3,3 | 2 | 0,60 | 10 |
| 552R | 10 | 30 | 4,5 | 9 | 3,3 | 2 | 1,20 | 10 |
| 553R | 16 | 40 | 5,5 | 10 | 4,2 | 4 | 1,90 | 10 |
| 554R | 25 | 45 | 7,0 | 12 | 4,2 | 4 | 2,85 | 10 |
| 555R | 35 | 45 | 8,5 | 13 | 5,0 | 4 | 3,00 | 10 |
| 556R | 50 | 48 | 10,0 | 15 | 5,0 | 4 | 4,00 | 10 |
