Features
- Simple and safe connection due to flat contact surfaces and internal chamfer
Material
- V2A (X5CrNi18-10)
Additional information
- Available as a special item in material V4A (X5CrNiMo17-12-2)
Material
Additional information
| Cable type | Description |
|---|---|
 |
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Multi-strand sector conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Multi-strand sector conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |

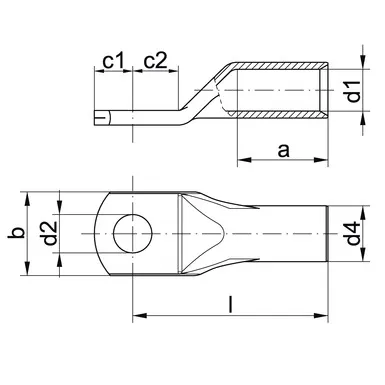

| PART NO. | Nominal cross-section mm² | Conn. bolts dia. | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | a | b | d2 | d4 | c1 | c2 | l | |||||
| 79V4 | 0,5-1 | M4 | 1,6 | 6 | 6,5 | 4,3 | 3,2 | 4,5 | 4,5 | 13 | 0,080 | 25 |
| 79V5 | 0,5-1 | M5 | 1,6 | 6 | 7,5 | 5,3 | 3,2 | 5 | 5,5 | 14 | 0,080 | 25 |
| 80V4 | 1,5-2,5 | M4 | 3,0 | 8 | 9,0 | 4,3 | 5,0 | 5 | 5,5 | 17 | 0,260 | 25 |
| 80V5 | 1,5-2,5 | M5 | 3,0 | 8 | 9,0 | 5,5 | 5,0 | 5 | 6 | 17 | 0,190 | 25 |
| 80V6 | 1,5-2,5 | M6 | 3,0 | 8 | 9,5 | 6,5 | 5,0 | 6,5 | 6,5 | 19 | 0,215 | 25 |
| 81V4 | 4-6 | M4 | 4,0 | 9 | 9,0 | 4,3 | 6,0 | 5 | 5,5 | 18 | 0,260 | 25 |
| 81V5 | 4-6 | M5 | 4,0 | 9 | 9,5 | 5,5 | 6,0 | 6 | 6 | 19 | 0,280 | 25 |
| 81V6 | 4-6 | M6 | 4,0 | 9 | 10,0 | 6,5 | 6,0 | 7 | 6,5 | 19 | 0,280 | 25 |
| 82V5 | 10 | M5 | 5,0 | 10 | 12,5 | 5,5 | 8,0 | 6,5 | 7,5 | 22 | 0,710 | 25 |
| 82V6 | 10 | M6 | 5,0 | 10 | 12,5 | 6,5 | 8,0 | 6,5 | 7,5 | 22 | 0,780 | 25 |
| 82V8 | 10 | M8 | 5,0 | 10 | 15,0 | 8,5 | 8,0 | 9 | 10 | 25 | 0,780 | 25 |
| 83V5 | 16 | M5 | 6,0 | 13 | 12,0 | 5,5 | 8,0 | 5,5 | 6,5 | 28 | 0,500 | 25 |
| 83V6 | 16 | M6 | 6,0 | 13 | 12,0 | 6,5 | 8,0 | 6 | 7,5 | 28 | 0,550 | 25 |
| 83V8 | 16 | M8 | 6,0 | 13 | 15,0 | 8,5 | 8,0 | 8,5 | 9,5 | 29 | 0,600 | 25 |
| 84V6 | 25 | M6 | 7,0 | 15 | 14,0 | 6,5 | 10,0 | 7,5 | 7,5 | 30 | 1,210 | 25 |
| 84V8 | 25 | M8 | 7,0 | 15 | 16,0 | 8,5 | 10,0 | 9 | 10 | 32 | 1,850 | 25 |
| 85V6 | 35 | M6 | 9,0 | 17 | 17,0 | 6,5 | 12,0 | 7,5 | 7,5 | 32 | 1,600 | 10 |
| 85V8 | 35 | M8 | 9,0 | 17 | 17,0 | 8,5 | 12,0 | 10 | 10 | 35 | 1,850 | 10 |
| 86V6 | 50 | M6 | 10,0 | 19 | 20,0 | 6,5 | 14,0 | 10 | 10 | 37 | 2,800 | 10 |
| 86V8 | 50 | M8 | 10,0 | 19 | 20,0 | 8,5 | 14,0 | 10 | 10 | 37 | 2,600 | 10 |
| 86V10 | 50 | M10 | 10,0 | 19 | 20,0 | 10,5 | 14,0 | 12 | 12 | 39 | 2,800 | 10 |
| 86V12 | 50 | M12 | 10,0 | 19 | 20,0 | 13,0 | 14,0 | 13 | 13 | 43 | 2,960 | 10 |
| 87V8 | 70 | M8 | 12,0 | 21 | 23,0 | 8,5 | 16,0 | 10 | 10 | 43 | 3,650 | 10 |
| 87V10 | 70 | M10 | 12,0 | 21 | 23,0 | 10,5 | 16,0 | 12 | 12 | 44 | 3,930 | 10 |
| 87V12 | 70 | M12 | 12,0 | 21 | 23,0 | 13,0 | 16,0 | 13 | 13 | 46 | 3,850 | 10 |
| 87V16 | 70 | M16 | 12,0 | 21 | 26,0 | 17,0 | 16,0 | 16 | 16 | 46 | 3,960 | 10 |
| 88V8 | 95 | M8 | 14,0 | 25 | 26,0 | 8,5 | 18,0 | 12 | 12 | 48 | 4,650 | 10 |
| 88V10 | 95 | M10 | 14,0 | 25 | 26,0 | 10,5 | 18,0 | 12 | 12 | 48 | 5,610 | 10 |
| 88V12 | 95 | M12 | 14,0 | 25 | 26,0 | 13,0 | 18,0 | 13 | 13 | 49 | 5,540 | 10 |
