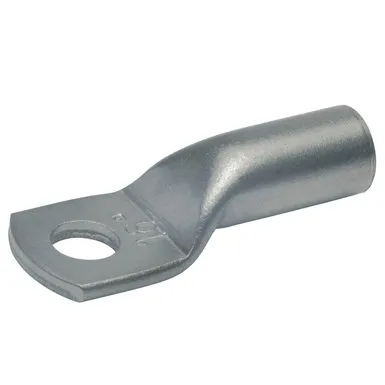

Features
- Simple and safe connection due to flat contact surfaces and internal chamfer
Material
- High-grade nickel
Material
| Cable type | Description |
|---|---|
 |
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper. |
 |
Multi-strand sector conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Multi-strand sector conductor 120° (Class 2 according to N 60228) made from bright finish or metal-encased annealed copper |
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |

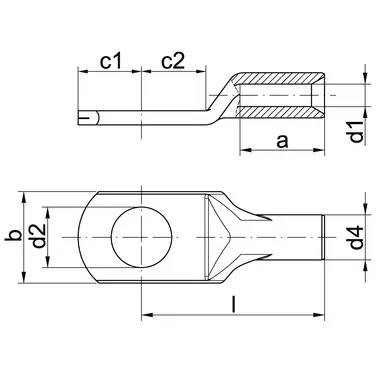

| PART NO. | Nominal cross-section mm² | Conn. bolts dia. | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | a | b | d2 | d4 | c1 | c2 | l | |||||
| 56N3 | 0,5-1 | M3 | 1.6 | 4 | 6,5 | 3,2 | 3,2 | 3,5 | 4,5 | 13 | 0,080 | 100 |
| 56N4 | 0,5-1 | M4 | 1,6 | 6 | 6,5 | 4,3 | 3,2 | 4,5 | 4,5 | 13 | 0,080 | 100 |
| 56N5 | 0,5-1 | M5 | 1,6 | 6 | 7,5 | 5,3 | 3,2 | 5,0 | 5,5 | 14 | 0,080 | 100 |
| 57N3 | 1,5-2,5 | M3 | 2,3 | 6 | 7,0 | 3,2 | 3,9 | 3,5 | 5,0 | 13 | 0,105 | 100 |
| 57N4 | 1,5-2,5 | M4 | 2,3 | 6 | 7,0 | 4,3 | 3,9 | 4,5 | 5,0 | 13 | 0,105 | 100 |
| 57N5 | 1,5-2,5 | M5 | 2,3 | 6 | 7,5 | 5,3 | 3,9 | 5,0 | 5,5 | 14 | 0,105 | 100 |
| 57N6 | 1,5-2,5 | M6 | 2,3 | 6 | 9,5 | 6,5 | 3,9 | 6,0 | 6,5 | 16 | 0,130 | 100 |
| 58N4 | 4-6 | M4 | 3,6 | 9 | 9,5 | 4,3 | 5,6 | 4,5 | 5,0 | 18 | 0,275 | 100 |
| 58N5 | 4-6 | M5 | 3,6 | 9 | 9,5 | 5,3 | 5,6 | 5,0 | 5,5 | 19 | 0,275 | 100 |
| 58N6 | 4-6 | M6 | 3,6 | 9 | 9,5 | 6,5 | 5,6 | 6,0 | 6,5 | 19 | 0,260 | 100 |
| 58N8 | 4-6 | M8 | 3,6 | 6 | 14 | 8,5 | 5,6 | 8,5 | 9,0 | 22 | 0,260 | 100 |
| 59N5 | 10 | M5 | 4,5 | 10 | 12,0 | 5,5 | 6,5 | 5,5 | 6,5 | 21 | 0,340 | 100 |
| 59N6 | 10 | M6 | 4,5 | 10 | 12,0 | 6,5 | 6,5 | 6,5 | 7,5 | 22 | 0,360 | 100 |
| 60N5 | 16 | M5 | 5,5 | 13 | 12,0 | 5,5 | 7,5 | 5,5 | 6,5 | 26 | 0,470 | 100 |
| 60N6 | 16 | M6 | 5,5 | 13 | 12,0 | 6,5 | 7,5 | 6,5 | 7,5 | 27 | 0,480 | 100 |
| 60N8 | 16 | M8 | 5,5 | 13 | 13,5 | 8,5 | 7,5 | 8,5 | 9,5 | 29 | 0,560 | 100 |
| 60N10 | 16 | M10 | 5,5 | 11 | 17 | 10,5 | 7,5 | 12,0 | 12,0 | 31 | 0,560 | 100 |
| 61N6 | 25 | M6 | 7,0 | 15 | 14,0 | 6,5 | 10,0 | 7,5 | 7,5 | 30 | 1,200 | 50 |
| 61N8 | 25 | M8 | 7,0 | 15 | 16,0 | 8,5 | 10,0 | 10,0 | 10,0 | 32 | 1,320 | 50 |
| 61N10 | 25 | M10 | 7,0 | 13 | 17,0 | 10,5 | 10,0 | 12,0 | 12,0 | 34 | 1,320 | 50 |
| 62N6 | 35 | M6 | 8,5 | 17 | 17,0 | 6,5 | 12,0 | 7,5 | 7,5 | 32 | 1,850 | 50 |
| 62N8 | 35 | M8 | 8,5 | 17 | 17,0 | 8,5 | 12,0 | 10,0 | 10,0 | 34 | 2,000 | 50 |
| 62N10 | 35 | M10 | 8,5 | 14,5 | 19,0 | 10,5 | 12,0 | 12,0 | 12,0 | 36 | 2,000 | 50 |
| 63N8 | 50 | M8 | 10,0 | 19 | 20,0 | 8,5 | 14,0 | 10,0 | 10,0 | 37 | 2,900 | 50 |
| 63N10 | 50 | M10 | 10,0 | 19 | 20,0 | 10,5 | 14,0 | 12,0 | 12,0 | 39 | 3,100 | 50 |
| 64N10 | 70 | M10 | 12,0 | 21 | 23,0 | 10,5 | 16,5 | 12,0 | 12,0 | 44 | 4,600 | 25 |
| 64N12 | 70 | M12 | 12,0 | 21 | 23,0 | 13,0 | 16,5 | 13,0 | 13,0 | 46 | 4,660 | 25 |
| 65N10 | 95 | M10 | 13,5 | 25 | 26,0 | 10,5 | 18,0 | 12,0 | 12,0 | 48 | 5,550 | 25 |
| 65N12 | 95 | M12 | 13,5 | 25 | 26,0 | 13,0 | 18,0 | 13,0 | 13,0 | 49 | 5,600 | 25 |
