ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

Pocket box made from impact-resistant plastic

Features

Stackable and resealable

Ordering Information

Ordering information

PART NO.	Description

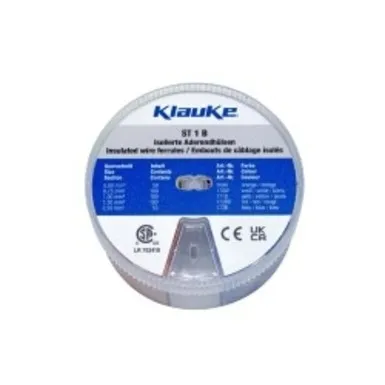

ST1B	Pocket box with insulated cable end sleeves 0.5 – 2.5 mm², DIN 46228 Part 4, colour code 1

Scope of delivery

PART NO.	Colour	Description	Quantity
169O		Insulated Cable end sleeve, 0.5 mm², 14 mm	50
170W		Insulated Cable end sleeve, 0.75 mm², 14.6 mm	100
171G		Insulated Cable end sleeve, 1 mm², 14.6 mm	100
172RO		Insulated Cable end sleeve, 1.5 mm², 14.6 mm	100
173B		Insulated Cable end sleeve, 2.5 mm², 15.2 mm	50
ST1L		Pocket box	1
