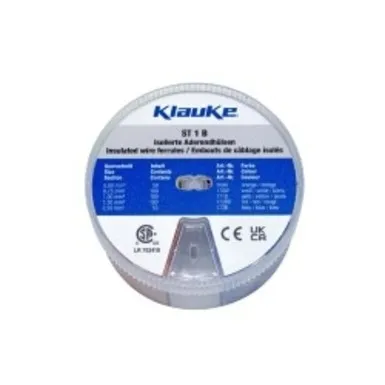

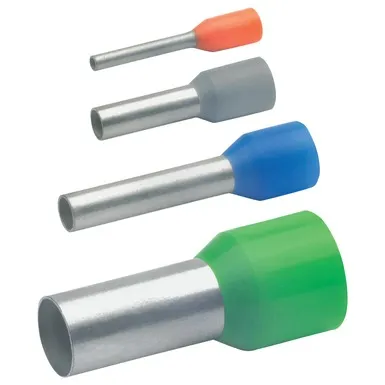

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1

ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1
ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1
ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1
ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1
ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1
ST 1 B pocket box with insulated cable end-sleeves 0.5-2.5 mm², DIN 46228 Part 4, colour code 1
  • Pocket box made from impact-resistant plastic

Features

  • Stackable and resealable

Ordering Information

Ordering information

PART NO. Description
ST1B Pocket box with insulated cable end sleeves 0.5 – 2.5 mm², DIN 46228 Part 4, colour code 1
Scope of delivery

PART NO. Colour Description Quantity
169O

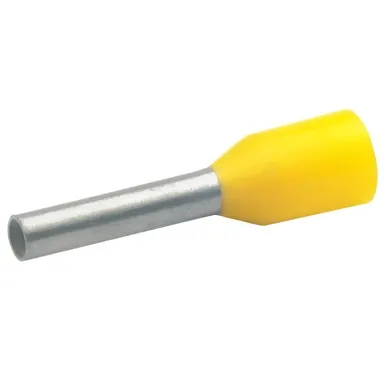

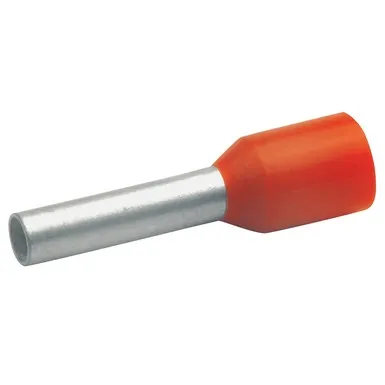

Insulated Cable end sleeve, 0.5 mm², 14 mm 50
170W
Insulated Cable end sleeve, 0.75 mm², 14.6 mm 100
171G
Insulated Cable end sleeve, 1 mm², 14.6 mm 100
172RO
Insulated Cable end sleeve, 1.5 mm², 14.6 mm 100
173B
Insulated Cable end sleeve, 2.5 mm², 15.2 mm 50
ST1L
Pocket box 1
