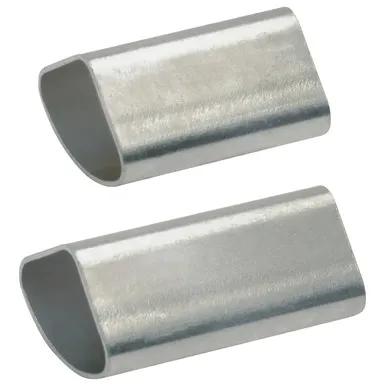

Sleeves for sector shaped conductors, 4-core cable, DIN version

Sleeves for sector shaped conductors, 4-core cable, DIN version

Sleeves for sector shaped conductors, 4-core cable, DIN version

Sleeves for sector shaped conductors, 4-core cable, DIN version

For multi-stranded, sector shaped conductors, e.g. tacc. o DIN EN 60228
For DIN compression cable lugs and connectors
To simplify pre-rounding of 4-conductor cables (90° angle)
Prevents sector shaped conductors from splicing during pre-rounding

Features

Material

Copper (HCP)

Surface

Tin-plated to protect against corrosion

Assembly instruction

For round crimping dies, see “Crimping dies”

Compatibility

Cable type

Cable type	Description
	Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively

Ordering Information

Ordering information

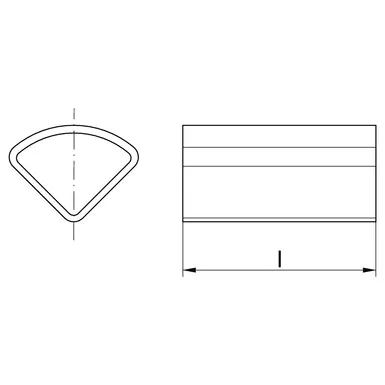

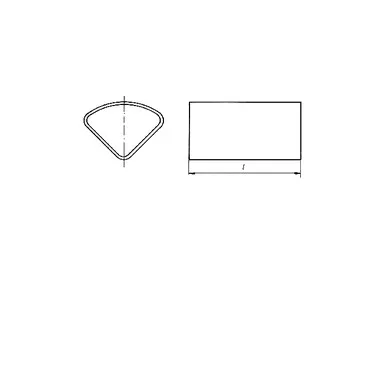

PART NO.	Nominal cross-section mm²	Dimensions mm l	Weight/100 pcs. ~kg	PU/pcs.
PART NO.	Nominal cross-section mm²	Dimensions mm l	Weight/100 pcs. ~kg	PU/pcs.	VHD354	35	17,5	0,11	100
VHD504	50	25,0	0,25	50
VHD704	70	25,0	0,38	50
VHD954	95	32,0	0,63	50
VHD1204	120	32,0	0,71	50
VHD1504	150	32,0	0,73	25
VHD1854	185	35,0	1,09	25
VHD2404	240	35,0	1,13	25
