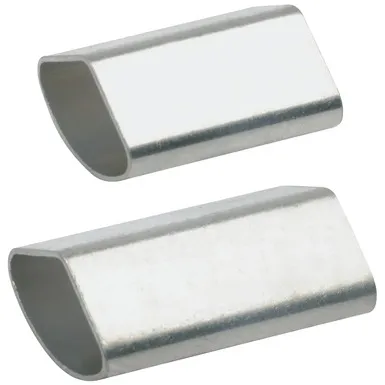

Sleeves for sector shaped conductors, 3-core cable, DIN version

Sleeves for sector shaped conductors, 3-core cable, DIN version

Sleeves for sector shaped conductors, 3-core cable, DIN version

Sleeves for sector shaped conductors, 3-core cable, DIN version

For multi-stranded, sector shaped conductors, e.g. acc. to EN 60228
For DIN compression cable lugs and connectors
To simplify pre-rounding of 3-core cables (120° angle)
Prevents sector shaped conductors from splicing during pre-rounding

Features

Material

Copper (HCP)

Surface

Tin-plated to protect against corrosion

Assembly instruction

For round crimping dies, see “Crimping dies”
Refer to the installation instructions in the technical appendix “Installation instructions for sleeves for compacted conductors, types VHR and VHD”

Compatibility

Cable type

Cable type	Description
	Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively

Ordering Information

Ordering information

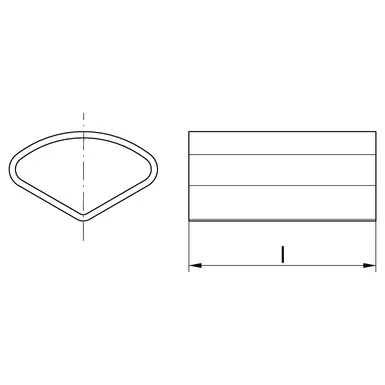

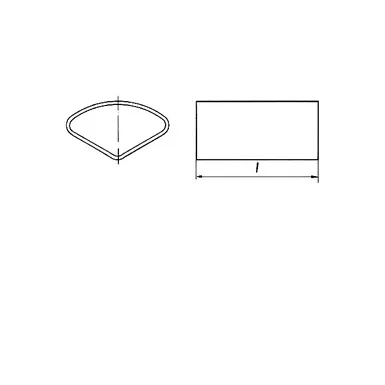

PART NO.	Nominal cross-section mm²	Dimensions mm l	Weight/100 pcs. ~kg	PU/pcs.
PART NO.	Nominal cross-section mm²	Dimensions mm l	Weight/100 pcs. ~kg	PU/pcs.	VHD353	35	17,5	0,11	100
VHD503	50	25,0	0,26	50
VHD703	70	25,0	0,39	50
VHD953	95	32,0	0,66	50
VHD1203	120	32,0	0,68	50
VHD1503	150	32,0	0,74	25
VHD1853	185	35,0	1,13	25
