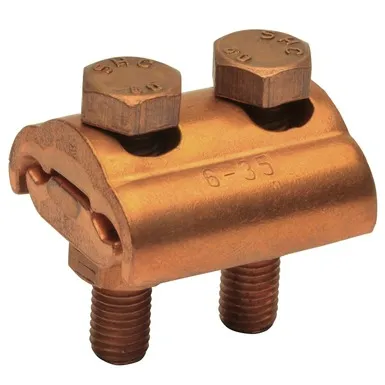

Screw-in branch clamps, Cu, 2 screws

Screw-in branch clamps, Cu, 2 screws

Screw-in branch clamps, Cu, 2 screws

For connecting of round conductors according to EN 60228 Cl. 1 and 2
For non-tension copper cables, e.g. acc. to DIN 48201-1

Features

Also for outdoor assembly
Version with 2 screws

Material

Copper (ETP)
Screw: V2A

Surface

Bright

Additional information

When connecting cross sections 95, 120 and 150 mm² two power branch clamps are to be used due to the current carrying capacity.

Compatibility

Cable type

Cable type	Description
	Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper
	Copper cable rope (DIN 48201-1)
	Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

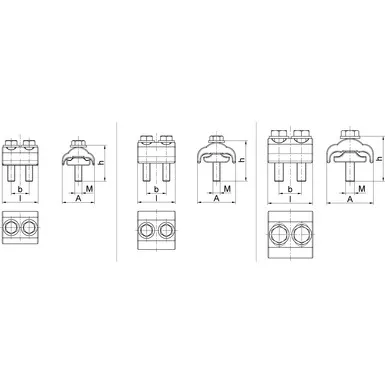

PART NO.	Nominal cross-section mm²	Dimensions mm			A	M	Torque Nm	Weight/100 pcs. ~kg	PU/pcs.
PART NO.	Nominal cross-section mm²	b	l	h	A	M	Torque Nm	Weight/100 pcs. ~kg	PU/pcs.
SAK670	6-70	36	40	40	20	M8	23	18,16	5
SAK1095	10-95	42,5	42	45	22	M8	20	24,15	5
SAK16150	16-150	52	50	50	25	M10	39	39,25	5
