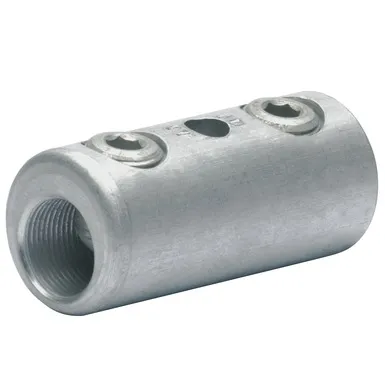

Screw connectors with 2 screws, with threaded pin, bright finished

Screw connectors with 2 screws, with threaded pin, bright finished
Screw connectors with 2 screws, with threaded pin, bright finished
Screw connectors with 2 screws, with threaded pin, bright finished
Screw connectors with 2 screws, with threaded pin, bright finished
  • For connecting various conductor types and materials, e.g. to DIN EN 60228 Cl. 1 and 2 (tin plated version)
  • Ideal for connecting identical and different conductor cross-sections
  • Reliable processing due to monitoring cable entry (dissimilar materials must not come into contact)

Features

  • Special groove profile inside to destroy the oxidation layer when crimping

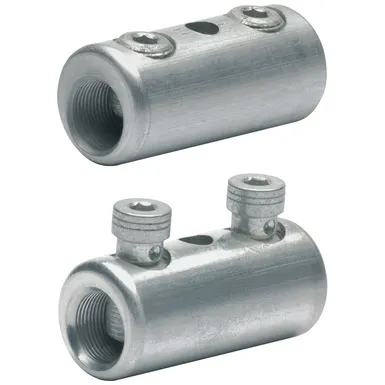

  • Either with threaded pin or shear head, shear head partly fixed
  • Version with 2 screws

Material

  • Insulated body: high-tensile aluminium alloy
  • Screws: copper alloy, tin plated

Surface

  • Either bright or tin-plated

Additional information

  • * = fixed version, Part Number appendix “NL”
  • **= version with fixed countersink shear head, Part Number appendix “VK”
  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, (r) = pre-rounded, (v) = compacted

Assembly instruction

  • Refer to the installation instructions in the technical appendix on page i-9
  • Refer to the installation instructions in the technical appendix: Installation instructions for screw connectors

Compatibility

Cable type

Cable type Description
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Single-strand compacted sector-shaped conductor 90° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
Single-strand compacted sector-shaped conductor 120° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
Multi-strand compacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively

Ordering Information

Ordering information

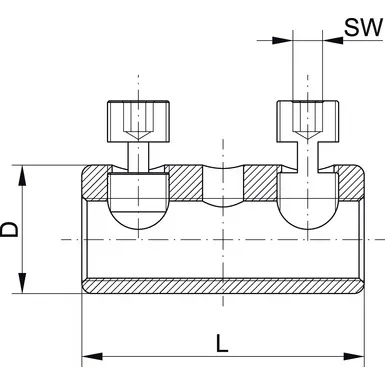

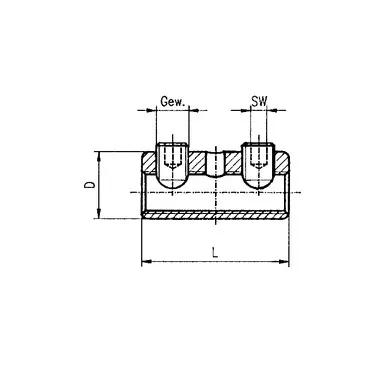

PART NO. Nominal cross-section mm² Dimensions mm Torque Nm Weight/100 pcs. ~kg PU/pcs.
re rm se sm D L SW
SV303 6 – 35 6 – 25, Cu 2,5 – 50 (v) — Cu 2,5 – 35 14 40 4 8 1,5 4
SV300 Cu 2,5-50, Al 10-50 Cu 2,5-50, Al 10-50 Cu 2,5-35, Al 10-35 Cu 2,5-35, Al 10-35 16,5 40 4 9 1,7 4
SV301 16 – 95 16 – 95 50 – 95 35 – 95 (r), 35 – 70 25 55 5 20 6,6 4
SV308 25-150 25-150 50-150 (90°), 50-150 (120°) — 28 70 6 25 11,3 4
SV302 35-50 35-185 50-185 (90°) 35-150 32 80 6 25 16 4
