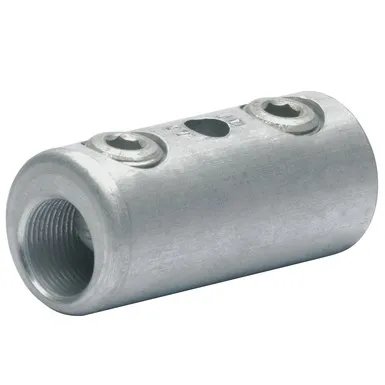

Screw connectors with 2 screws, with shear head, tin-plated

Screw connectors with 2 screws, with shear head, tin-plated
Screw connectors with 2 screws, with shear head, tin-plated
Screw connectors with 2 screws, with shear head, tin-plated
Screw connectors with 2 screws, with shear head, tin-plated
Screw connectors with 2 screws, with shear head, tin-plated
  • For connecting various conductor types and materials, e.g. acc. to EN 60228 Cl. 1 and 2 (tin-plated version)
  • Ideal for connecting identical and different conductor cross-sections
  • Reliable processing due to monitoring cable entry (dissimilar materials must not come into contact)

Features

  • Special groove profile inside to destroy the oxidation layer when crimping

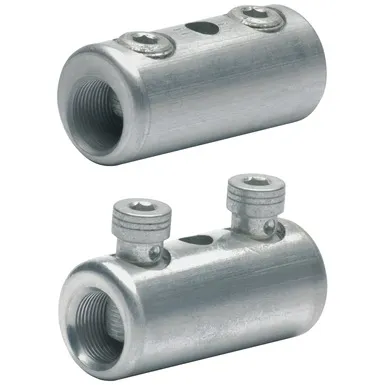

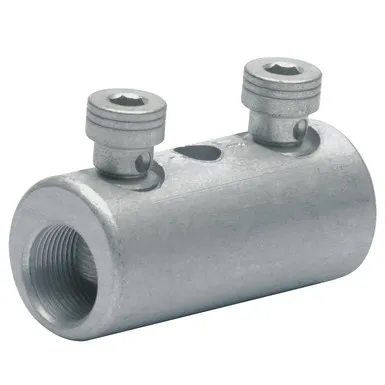

  • Either with set screws or shear head, shear head partly fixed
  • Version with 2 screws

Material

  • Insulated body: high-tensile aluminium alloy
  • Screws: copper alloy, tin-plated

Surface

  • Either bright or tin-plated

Additional information

  • **= version with fixed countersink shear head, part number appendix “VK”
  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, (r) = pre-rounded, (v) = compacted

Assembly instruction

  • Refer to the installation instructions in the technical appendix: installation instructions for screw connectors

Compatibility

Cable type

Cable type Description
Multi-strand uncompacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Single-strand compacted sector-shaped conductor 120° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Single-strand compacted sector-shaped conductor 90° (Class 1 according to EN 60228) made from aluminium or aluminium alloy

Ordering Information

Ordering information

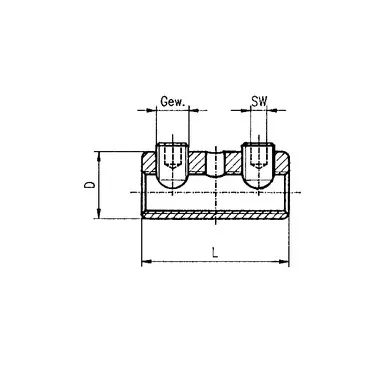

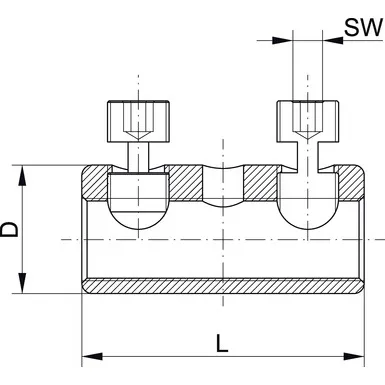

PART NO. Nominal cross-section mm² Dimensions mm D Note Dimensions mm Torque Nm Weight/100 pcs. ~kg PU/pcs.
re rm se sm L SW
SV304AKNLV Cu 2,5-50, Al 10-50 Cu 2,5-50, Al 10-50 Cu 2,5-35, Al 10-35 Cu 2,5-35, Al 10-35 16,5 – 40 4 9 1,7 4
SV301AKV 16-95 16-95 50-95 35-70, 35-95 (r) 25 ** 55 5 20 6,6 4
SV302AKV 35-50 35-185 50-150 (120°), 50-185 (90°) 35-150 32 – 80 6 25 16 4
