Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively |
 |
Multi-strand uncompacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively |
 |
Multi-strand compacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively |
 |
Single-strand compacted sector-shaped conductor 90° (Class 1 according to EN 60228) made from aluminium or aluminium alloy |
 |
Single-strand compacted sector-shaped conductor 120° (Class 1 according to EN 60228) made from aluminium or aluminium alloy |
 |
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively |
 |
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively |

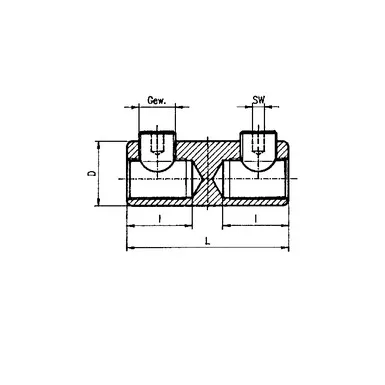

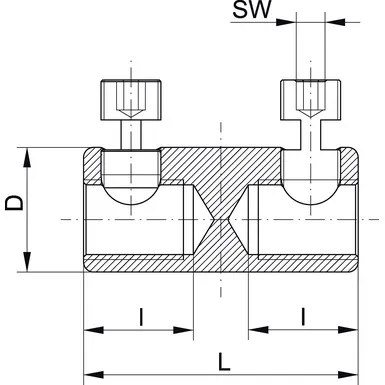

| PART NO. | Nominal cross-section mm² | Dimensions mm | Torque Nm | Weight/100 pcs. ~kg | PU/pcs. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| re | rm | se | sm | l | D | L | SW | ||||
| SV315V | Cu 2,5-50, Al 10-50 | Cu 2,5-50, Al 10-50 | Cu 2,5-35, Al 10-35 | Cu 2,5-35, Al 10-35 | 17,5 | 16 | 40 | 4 | 9 | 1,7 | 4 |
| SV309V | 16 – 95 | 16 – 95 | 50 – 95 | 35 – 95 (r), 35 – 70 | 22 | 25 | 55 | 5 | 20 | 6,6 | 4 |
| SV320V | 25-150 | 25-150 | 50-150 (90″), 50-150 (120°) | — | 31 | 28 | 70 | 6 | 25 | 11,3 | 4 |
| SV310V | 35-50 | 35-185 | 50-185 (90°) | 35-185 (r) | 32,5 | 32 | 80 | 6 | 25 | 16 | 4 |
