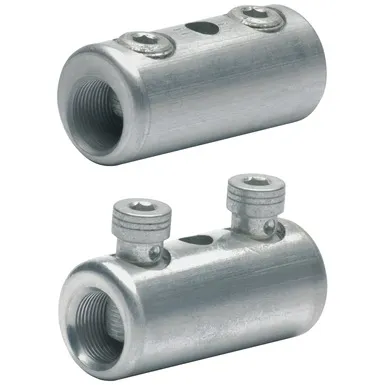

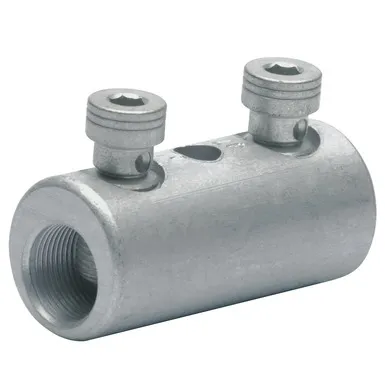

Screw connector with 2 screws, with shear head, bright finished

Screw connector with 2 screws, with shear head, bright finished
Screw connector with 2 screws, with shear head, bright finished
Screw connector with 2 screws, with shear head, bright finished
Screw connector with 2 screws, with shear head, bright finished
Screw connector with 2 screws, with shear head, bright finished
  • For connecting various conductor types and materials, e.g. acc. to EN 60228 Cl. 1 and 2 (tin-plated version)
  • Ideal for connecting identical and different conductor cross-sections
  • Reliable processing due to monitoring cable entry (dissimilar materials must not come into contact)

Features

  • Special groove profile inside to destroy the oxidation layer when crimping
  • Either with set screws or shear head, shear head partly fixed
  • Version with 2 screws

Material

  • Insulated body: high-tensile aluminium alloy
  • Screws: copper alloy, tin plated

Surface

  • Either bright or tin-plated

Additional information

  • * = fixed version, Part Number appendix “NL”
  • **= version with fixed countersink shear head, Part Number appendix “VK”
  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, (r) = pre-rounded, (v) = compacted

Assembly instruction

Compatibility

Cable type

Cable type Description
Multi-strand uncompacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively.
Single-strand compacted sector-shaped conductor 120° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Single-strand compacted sector-shaped conductor 90° (Class 1 according to EN 60228) made from aluminium or aluminium alloy

Ordering Information

Ordering information

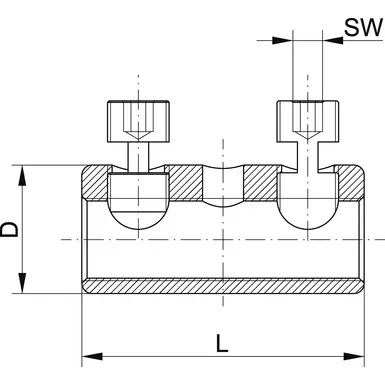

PART NO. Nominal cross-section mm² Note Dimensions mm Torque Nm Weight/100 pcs. ~kg PU/pcs.
re rm se sm D L SW
SV303AK 6-35 6-25 — — * 14 40 4 8 1,5 4
SV303AKNL 6-35 6-25, Cu 2,5-50 (v) — Cu 2,5-35 * 14 40 4 8 1,5 4
SV304AKNL Cu 2,5-50, Al 10-50 Cu 2,5-50, Al 10-50 Cu 2,5-35, Al 10-35 Cu 2,5-35, Al 10-35 – 16,5 40 4 9 1,7 4
SV307AKNL 10-70 10-70 50-70 35-70 – 22 57 5 15 4,7 4
SV301AK 16-95 16-95 50-95 35-95 (r), 35-70 – 25 55 5 20 6,6 4
SV302AK 35-50 35-185 50-185 (90°) 35-150 – 32 80 6 25 16 4
