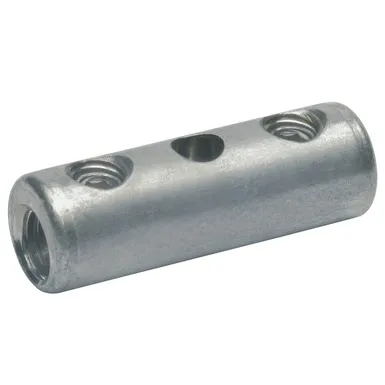

Screw connector for street lighting with threaded pin, tin plated

Screw connector for street lighting with threaded pin, tin plated
Screw connector for street lighting with threaded pin, tin plated
Screw connector for street lighting with threaded pin, tin plated
  • Ideal for connecting various conductor types and materials, e.g. to DIN EN 60228 Cl. 1 and 2 (tin plated version)
  • Ideal for connecting identical and different conductor cross-sections
  • Suitable cross-section range for street lighting

Features

  • Special groove profile inside to destroy the oxidation layer when crimping
  • With inspection hole for monitoring full cable insertion

Material

  • Contact bolt: brass (CuZn)
  • Screws: stainless steel, tin-plated

Surface

  • Either bright or tin-plated

Additional information

  • rm = round multi-stranded; re = round single solid

Assembly instruction

  • Refer to the installation instructions in the technical appendix on page i-8

Compatibility

Cable type

Cable type Description
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively

Ordering Information

Ordering information

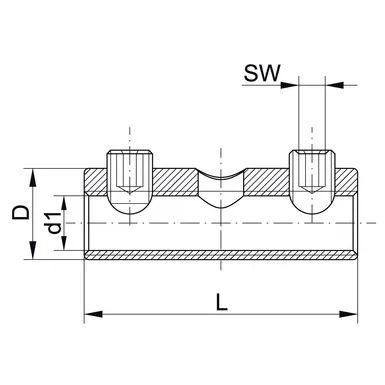

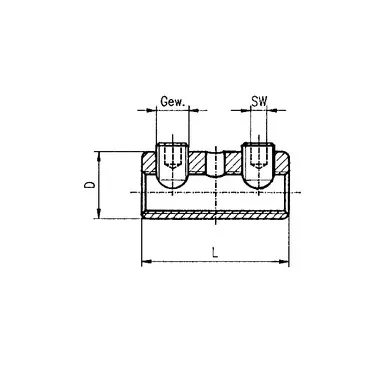

PART NO. Nominal cross-section mm² Dimensions mm Weight/100 pcs. ~kg Dimensions mm Torque Nm PU/pcs.
re rm D d1 L SW
SV200 1,5 – 16 1,5 – 16 10 5.5 1,35 30 2,5 4 4
