Features
- Also for outdoor assembly

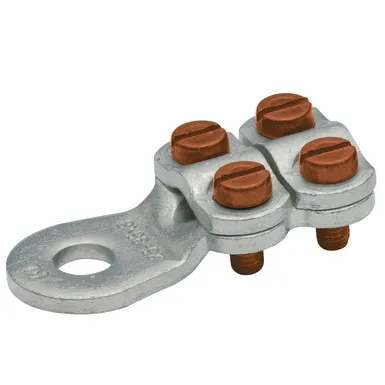

- Available with 2 or 4 screws
Material
- Copper (ETP)
- Screws: DIN 84 / DIN 933 bronze, F 60
Surface
- Tin-plated to protect against corrosion
Additional information
- Part number appendix for bright version “BK”
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Multi-strand conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper. |
 |
Single-strand conductor (Class 1 according to DIN EN 60228) made from bright finish or metal-encased annealed copper. |
| PART NO. | Nominal cross-section mm² | Dimensions mm | Number of screws | Torque Nm | Weight/100 pcs. ~kg | PU/pcs. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| b | d2 | l | h | b1 | k | ||||||
| 572R6 | 6 – 10 | 15,0 | 6,5 | 23,0 | 10 | 18,0 | M4 | 2 | 4 | 1,30 | 50 |
| 573R6 | 10 – 16 | 15,0 | 6,5 | 27,0 | 14 | 20,5 | M5 | 2 | 6 | 1,30 | 50 |
| 573R8 | 10 – 16 | 15,0 | 8,5 | 27,0 | 14 | 20,5 | M5 | 2 | 6 | 1,30 | 50 |
| 574R8 | 16 – 25 | 15,0 | 8,5 | 30,0 | 16 | 25,0 | M5 | 2 | 6 | 2,75 | 50 |
| 584R8 | 16 – 25 | 18,5 | 8,5 | 36,0 | 16 | 22,5 | M5 | 4 | 6 | 3,70 | 25 |
| 584R10 | 16 – 25 | 19,5 | 10,5 | 37,0 | 16 | 22,5 | M5 | 4 | 6 | 3,75 | 25 |
| 575R8 | 25 – 35 | 18,5 | 8,5 | 25,5 | 16 | 24,0 | M5 | 2 | 6 | 2,50 | 50 |
| 585R8 | 25 – 35 | 18,5 | 8,5 | 38,5 | 16 | 24,0 | M5 | 4 | 6 | 4,30 | 25 |
| 585R10 | 25 – 35 | 21,5 | 10,5 | 42,0 | 16 | 24,0 | M5 | 4 | 6 | 4,65 | 25 |
| 585R12 | 25 – 35 | 21,5 | 13,0 | 42,0 | 16 | 24,0 | M5 | 4 | 6 | 4,50 | 25 |
| 586R10 | 35 – 50 | 19,0 | 10,5 | 46,0 | 19 | 28,0 | M6 | 4 | 8 | 6,75 | 25 |
| 586R12 | 35 – 50 | 21,0 | 13,0 | 47,0 | 19 | 28,0 | M6 | 4 | 8 | 6,70 | 25 |
| 587R10 | 50 – 70 | 23,5 | 10,5 | 51,0 | 19 | 31,0 | M6 | 4 | 8 | 9,35 | 10 |
| 587R12 | 50 – 70 | 23,5 | 13,0 | 51,0 | 19 | 31,0 | M6 | 4 | 8 | 9,30 | 10 |
| 588R10 | 70 – 95 | 24,0 | 10,5 | 57,0 | 25 | 34,0 | M6 | 4 | 8 | 12,00 | 10 |
| 588R12 | 70 – 95 | 24,0 | 13,0 | 57,0 | 25 | 34,0 | M6 | 4 | 8 | 11,85 | 10 |
| 589R10 | 95 – 150 | 30,0 | 10,5 | 61,0 | 32 | 42,0 | M8 | 4 | 20 | 20,15 | 10 |
| 589R12 | 95 – 150 | 30,0 | 13,0 | 61,0 | 32 | 42,0 | M8 | 4 | 20 | 20,20 | 10 |
| 589R16 | 95 – 150 | 30,0 | 17,0 | 61,5 | 32 | 42,0 | M8 | 4 | 20 | 20,10 | 10 |
| 590R10 | 150 – 240 | 34,0 | 10,5 | 68,5 | 32 | 48,5 | M8 | 4 | 20 | 24,40 | 5 |
| 590R12 | 150 – 240 | 34,0 | 13,0 | 68,5 | 32 | 48,5 | M8 | 4 | 20 | 24,35 | 5 |
| 590R16 | 150 – 240 | 34,0 | 17,0 | 68,5 | 32 | 48,5 | M8 | 4 | 20 | 24,30 | 5 |
| 592R12 | 185 – 300 | 32,0 | 13,0 | 68,5 | 37 | 50,0 | M8 | 4 | 20 | 27,95 | 5 |
| 592R16 | 185 – 300 | 32,0 | 17,0 | 68,5 | 37 | 50,0 | M8 | 4 | 20 | 28,00 | 5 |
| 587R12BK | 50 – 70 | 23,5 | 13,0 | 51,0 | 19 | 31,0 | M6 | 4 | 8 | 9,30 | 10 |
