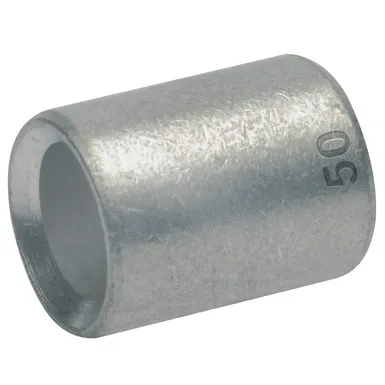

Parallel connectors, Cu, standard type

Parallel connectors, Cu, standard type
Parallel connectors, Cu, standard type
Parallel connectors, Cu, standard type
  • For multi-stranded round conductors, e.g. to EN 60228 Cl. 2
  • Ideal for connecting differing cable cross-sections
  • Simple cable entry due to precise internal chamfer

Features

Properties

  • Simple cable entry due to precise internal chamfer

Material

  • Copper (EN13600)

Surface

  • Tin-plated to protect against corrosion

Additional information

  • The stated nominal cross-section corresponds to the total cross-section of the cable
  • Additional conductor types and combinations on request
  • For more information on wire and cable designations, see page i-6

Compatibility

Cable type

Cable type Description
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

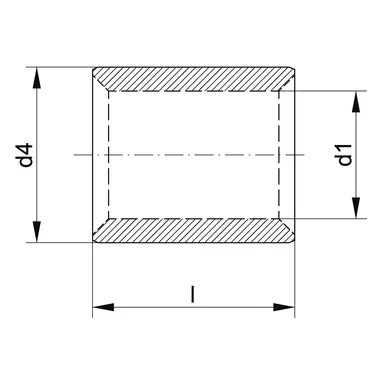

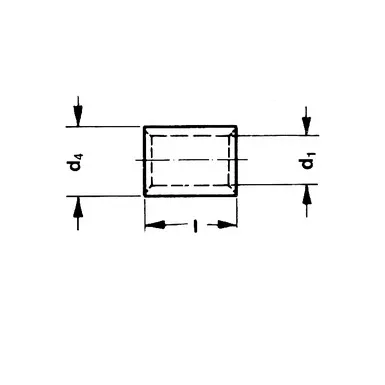

PART NO. Nominal cross-section mm² Dimensions mm Weight/100 pcs. ~kg PU/pcs.
d1 d4 l
148R 1,5 1,8 3,3 5 0,03 100
149R 2,5 2,3 4,2 5 0,04 100
150R 4 3,0 5,0 7 0,08 100
151R 6 4,0 6,0 7 0,09 100
152R 10 4,5 7,0 9 0,17 100
153R 16 5,5 8,5 10 0,28 100
154R 25 7,0 10,0 13 0,44 100
155R 35 8,5 12,0 16 0,78 100
156R 50 10,0 14,0 19 1,22 100
157R 70 12,0 16,5 19 1,62 50
158R 95 13,5 18,0 20 1,90 50
159R 120 15,0 19,5 22 2,28 50
160R 150 16,5 21,0 26 3,00 50
161R 185 19,0 24,0 30 4,37 50
162R 240 21,0 26,0 32 5,10 25
163R 300 23,5 29,5 36 8,05 25
