Features
- Dimensions in the plug sector to DIN 46244
- For soldering in printed circuits
Material
- Brass (CuZn)
Surface
- Tin-plated to protect against corrosion
Material
Surface

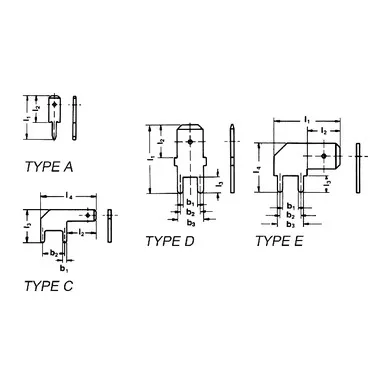

| PART NO. | Tab Thickn. | Tab Width | Type | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l1 | l3 | l2 | s | b1 | b2 | b3 | l4 | ||||||
| 2010 | 0,8 | 2,8 | A | 10,5 | — | 6,5 | 0,8 | — | — | — | — | 0,015 | 100 |
| 2025 | 0,8 | 2,8 | C | — | 8 | 7,1 | 0,8 | 1,0 | 5 | — | 13,4 | 0,040 | 100 |
| 2030 | 0,8 | 6,3 | D | 16,0 | 4 | 8,0 | 0,8 | 3,5 | 5 | 6,4 | 12,0 | 0,065 | 100 |
| 2035 | 0,8 | 6,3 | E | 16,0 | 3 | 8,0 | 0,8 | 3,8 | 5 | 6,2 | 12,0 | 0,085 | 100 |
