Features
Material
- brass (CuZn)
Surface
- Tin-plated to protect against corrosion
Additional information
- * = dimensions in the plug sector to DIN 46244
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

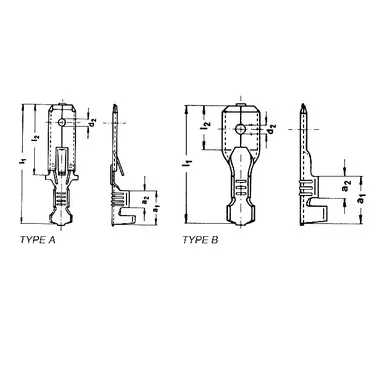

| PART NO. | Nominal cross-section mm² | Nominal size according to DIN | Tab Thickn. | Tab Width | Type | Note | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d2 | l1 | l2 | a1 | a2 | |||||||||
| 2235 | 0,5-1 | – | 0,8 | 2,8 | A | * | 1,30 | 22,5 | 12,7 | 6,0 | 3,2 | 0,045 | 100 |
| 2220 | 0,5-1 | 46343 B6,3 – 1 | 0,8 | 6,3 | A | – | 1,65 | 28,0 | 16,0 | 8,2 | 4,0 | 0,085 | 100 |
| 1830 | 1,5-2,5 | 46248 A6,3 – 2,5 | 0,8 | 6,3 | B | – | 1,65 | 20,0 | 8,0 | 9,0 | 4,5 | 0,065 | 100 |
| 2230 | 1,5-2,5 | 46343 B6,3 – 2,5 | 0,8 | 6,3 | A | – | 1,65 | 28,0 | 16,0 | 8,2 | 4,0 | 0,090 | 100 |
| 2250 | 4-6 | 46343 B6,3 – 6 | 0,8 | 6,3 | A | – | 1,65 | 28,0 | 16,0 | 8,2 | 4,0 | 0,100 | 100 |
