eatures
- To DIN 46340, sheet 3
- With latch to engage in housing
- Improved contact properties due to grooved profile
Material
- Brass (CuZn)
Surface
- Tin-plated to protect against corrosion
Material
Surface
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

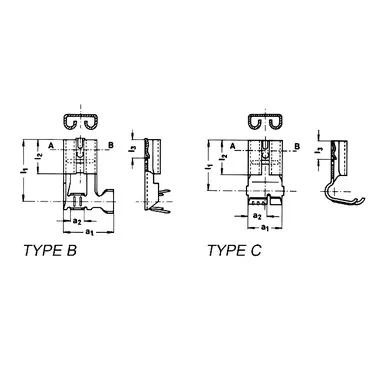

| PART NO. | Nominal cross-section mm² | Tab Thickn. | Tab Width | Type | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l1 | l3 | l2 | a1 | a2 | l4 | |||||||
| 3720 | 0,5 – 1 | 0,8 | 6,3 | B | 12,5 | 4,0 | 7,4 | 11,0 | 3,0 | 7,2 | 0,080 | 100 |
| 3725 | 0,5-1,5 | 0,8 | 6,3 | C | 11,00 | 4,0 | 7,4 | 7,5 | 4,0 | 7,2 | 0,085 | 100 |
| 3735 | 1,5 – 2,5 | 0.8 | 6.3 | B | 13.5 | 4.0 | 7.0 | 11.0 | 3.0 | 7.2 | 0.085 | 100 |
