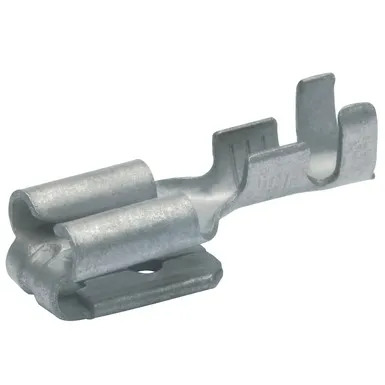

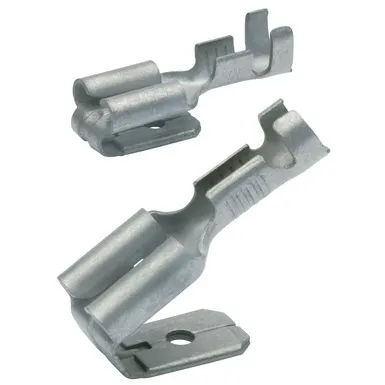

Features
- To DIN 46247, part 1 – 3 and similar versions
- Improved contact properties due to grooved profile
Material
- Brass (CuZn)
Surface
- Tin-plated to protect against corrosion
Additional information
- * = corresponds to DIN 46345
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

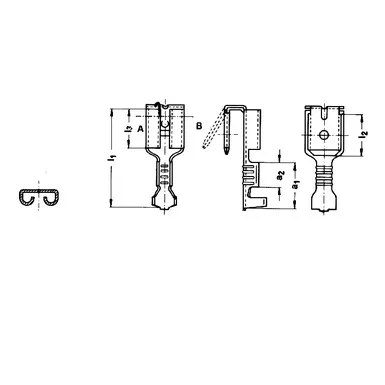

| PART NO. | Nominal cross-section mm² | Tab Thickn. | Tab Width | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| l1 | l3 | l2 | s | a1 | a2 | ||||||
| 18203AZ | 0,5-1 | 0,8 | 4,8 | 15,6 | 6,0 | 7 | 0,38 | 6,0 | 3,4 | 0,09 | 100 |
| 18303AZ | 1,5-2,5 | 0,8 | 4,8 | 15,6 | 6,0 | 7 | 0,38 | 6,0 | 3,4 | 0,09 | 100 |
| 1730AZ | 1,5-2,5 | 0,8 | 6,3 | 19,2 | 7,5 | 8 | 0,38 | 8,5 | 4,5 | 0,13 | 100 |
