Features
- To DIN 46247, Part 1 – 3 and similar versions
- Improved contact properties due to grooved profile
Material
- Brass (CuZn)
Surface
- Tin-plated to protect against corrosion
Additional information
- * = corresponds to DIN 46345
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

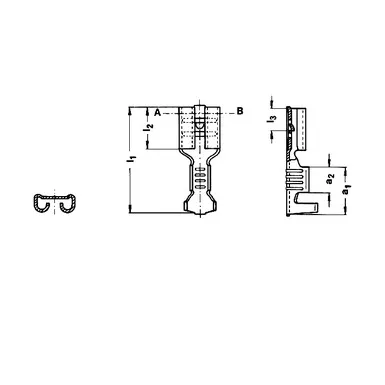

| PART NO. | Nominal cross-section mm² | Nominal size according to DIN | Tab Thickn. | Tab Width | Dimensions mm l1 | Note | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l3 | l2 | s | a1 | a2 | |||||||||
| 18251 | 0,5-1 | — | 0,5 | 2,8 | 12,5 | – | 3,3 | 5,0 | 0,30 | 5,0 | 2,8 | 0,025 | 100 |
| 18251A | 0,5-1 | — | 0,8 | 2,8 | 12,5 | – | 3,3 | 5,0 | 0,30 | 5,5 | 2,5 | 0,025 | 100 |
| 18201A | 0,5-1 | B 2,8-1 | 0,8 | 2,8 | 14,0 | – | 3,3 | 6,3 | 0,35 | 5,5 | 2,5 | 0,025 | 100 |
| 18202 | 0,5-1 | — | 0,5 | 4,8 | 15,6 | – | 3,8 | 6,0 | 0,35 | 6,0 | 3,4 | 0,050 | 100 |
| 18203 | 0,5-1 | 4,8-1 | 0,8 | 4,8 | 15,6 | – | 3,8 | 6,0 | 0,35 | 6,0 | 3,4 | 0,050 | 100 |
| 1720 | 0,5-1 | 6,3-1 | 0,8 | 6,3 | 19,0 | – | 4,0 | 7,4 | 0,45 | 8,5 | 4,5 | 0,085 | 100 |
| 18303 | 1,5-2,5 | 4,8-2,5 | 0,8 | 4,8 | 15,6 | – | 3,8 | 6,0 | 0,35 | 6,0 | 3,4 | 0,055 | 100 |
| 1750 | 4-6 | 6,3-6 | 0,8 | 6,3 | 19,0 | * | 4,0 | 7,4 | 0,45 | 8,5 | 4,5 | 0,100 | 100 |
| 1730 | 1,5-2,5 | 6,3-2,5 | 0,8 | 6,3 | 19,0 | * | 4,0 | 7,4 | 0,45 | 8,5 | 4,5 | 0,082 | 100 |
