MK 230 B 507 Steel assortment box with insulated cable connections and crimping tool

  • Hammer-tone finished assortment box
  • Ideal for workshop equipment

Ordering Information

Ordering information

PART NO. Description Dimensions mm
MK230B507 Steel assortment box with insulated cable connections and crimping tool 366x230x51
Scope of delivery

PART NO. Colour Description Quantity
6204

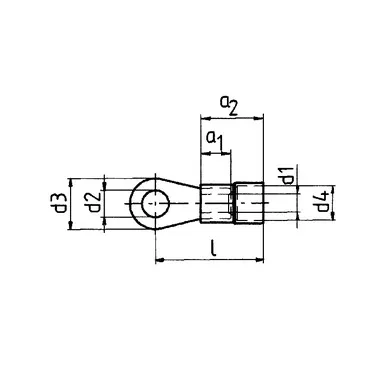

Insulated Solderless terminal M4, 0.5-1 mm² 50
6205
Insulated solderless terminal M5, 0.5-1 mm² 50
6206
Insulated solderless terminal M6, 0.5-1 mm² 50
620C4
Insulated Solderless terminal M4, 0.5-1 mm² 50
6304
Insulated Solderless terminal M4, 1.5 – 2.5 mm² 50
6305
Insulated Solderless terminal M5, 1.5 – 2.5 mm² 50
6306
Insulated Solderless terminal M6, 1.5 – 2.5 mm² 50
630C4
Insulated Solderless terminal M4, 1.5 – 2.5 mm² 50
6505
Insulated Solderless terminal M5, 4-6 mm² 25
6506
Insulated Solderless terminal M6, 4 – 6 mm² 25
650C6
Insulated Solderless terminal M6, 4 – 6 mm² 25
670

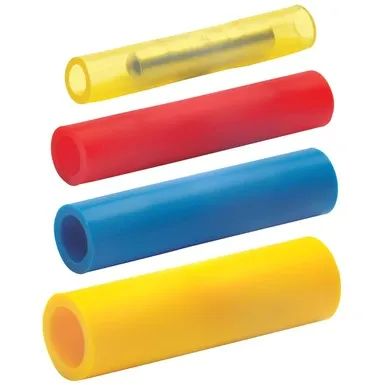

Insulated Butt connector, 0.5-1 mm² 50
680
Insulated Butt connectors, 1.5-2.5 mm² 50
700
Insulated Butt connectors, 4-6 mm² 25
705

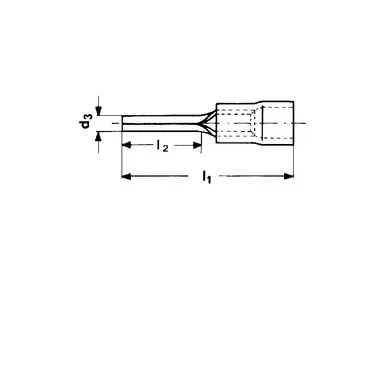

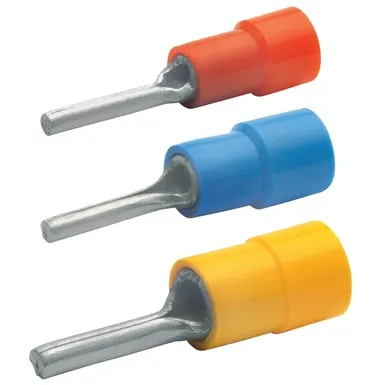

Insulated Pin terminal, 0.5-1 mm², 22mm 50
710
Insulated Pin terminals, 1.5-2.5 mm², 23 mm 50
715
Insulated Pin terminals, 0.1-0.4 mm², 26 mm 25
730

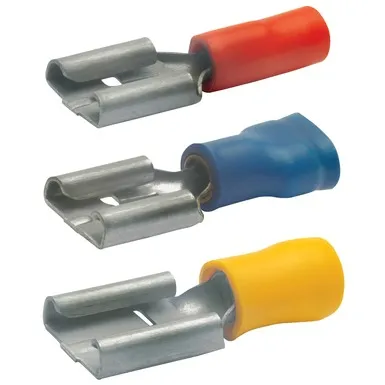

Insulated Receptacle 6.3×0.8 mm, 1.5-2.5 mm² 50
830

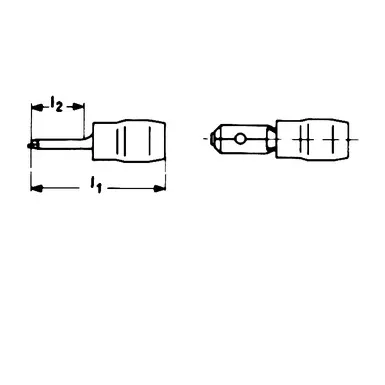

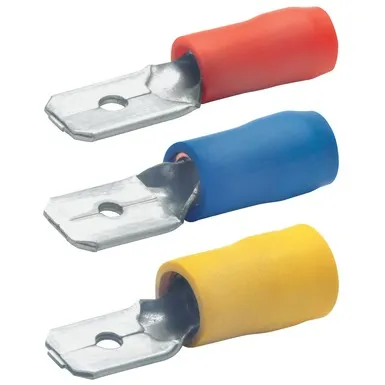

Insulated Tab 6.3×0.8 mm, 1.5-2.5 mm² 50
K507
Crimping tool with interchangeable dies 1
MK230L
Steel carrying case 1
