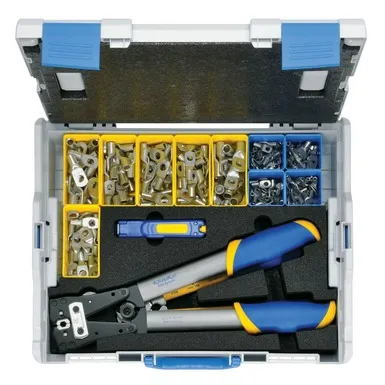

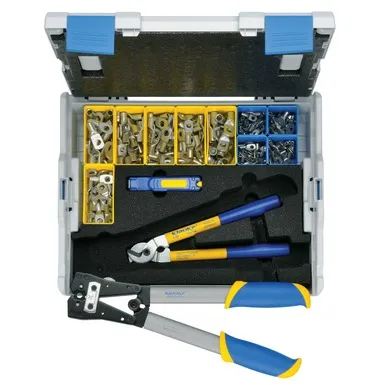

L-BOXX 50B made of plastic with standard equipment for electrical installations

  • Comprehensive equipment for conductor preparation, comprising cable cutter, cable knife, crimping tool and connectors

Features

  • Manufactured from shock and impact resistant ABS plastic, very robust, 100 kg capacity
  • Stackable using an Easy-Click system, which allows easy opening and closing

Ordering Information

Ordering information

PART NO. Description Dimensions mm
LBOXX50B L-BOXX made of plastic with standard equipment for electrical installations 442x357x117
Scope of delivery

PART NO. Description Quantity
K05D Syncro crimping tool for compression cable lugs and connectors (DIN 46235 / DIN 46267, Part 1) 6 – 50 mm² 1
K100 Hand-operated cutting tool for Al and Cu cables to 14 mm dia. 1
KL740416 Cable knife, without blade 4 – 16 mm dia. 1

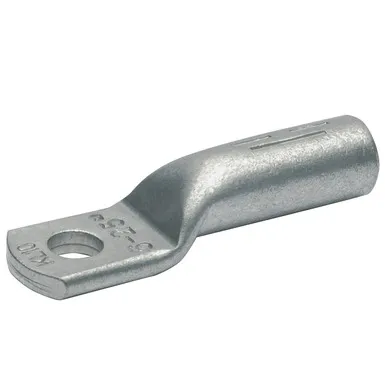

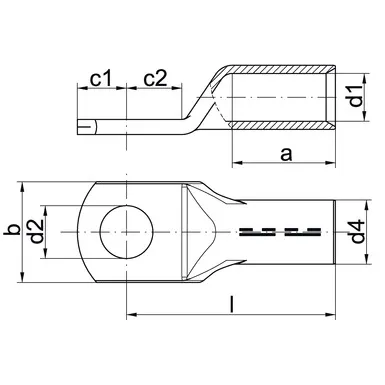

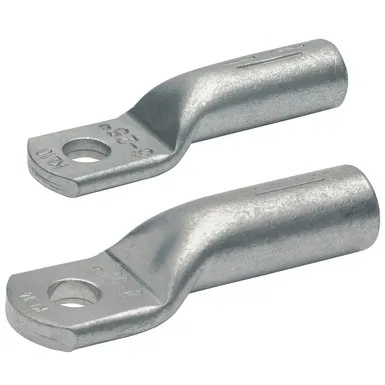

101R6 Compression cable lug, DIN 46235, 6 mm², M6, Cu tin plated 25
101R8 Compression cable lug, 6 mm², M8, Cu tin plated 25
102R6 Compression cable lug DIN 46235, 10 mm², M6, Cu tin plated 25
102R8 Compression cable lug, 10 mm², M8, Cu tin plated 25
103R10 Compression cable lug, DIN 46235, 16 mm², M10, Cu tin plated 25
104R8 Compression cable lug DIN 46235, 25 mm², M8, Cu tin plated 20
104R10 Compression cable lug DIN 46235, 25 mm², M10, Cu tin plated 20
105R8 Compression cable lug DIN 46235, 35 mm², M8, Cu tin plated 15
106R8 Compression cable lug DIN 46235, 50 mm², M8, Cu tin plated 10
106R10 Compression cable lug DIN 46235, 50 mm², M10, Cu tin plated 10
LBOXX102LFG L-BOXX with front handle 1
