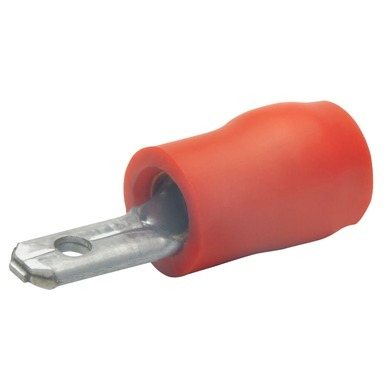

Features

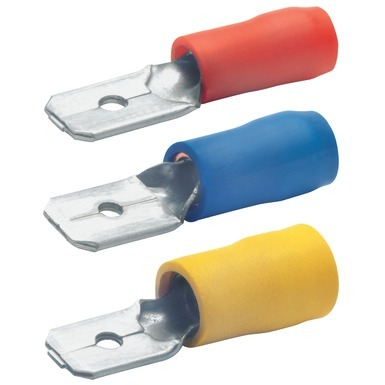

- Cross-section-dependent colour-coding
- Temperature resistance: PVC to 70 °C, PA to 105 °C
Material
- brass (CuZn)
- Insulation sleeve: PVC/PA
Surface
- Tin-plated to protect against corrosion
Material
Surface
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |
| PART NO. | Nominal cross-section mm² | Colour | Tab Thickn. | Tab Width | Dimensions mm | Ins. Mat. | Weight/100 pcs. ~kg | PU/pcs. | |
|---|---|---|---|---|---|---|---|---|---|

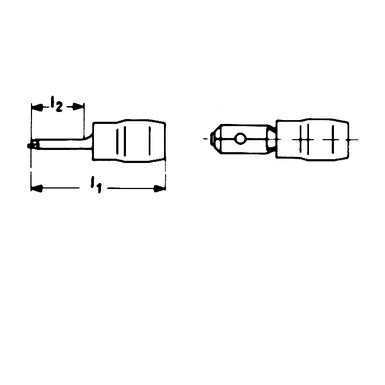

| l1 | l2 | ||||||||
| 8201C | 0,5-1 |
|
0,5 | 2,8 | 22,0 | 11,5 | PA | 0,040 | 100 |
| 8201B | 0,5-1 |
|
0,8 | 2,8 | 14,6 | 5,5 | PVC | 0,060 | 100 |
| 8202B | 0,5-1 |
|
0,5 | 4,8 | 22,0 | 11,5 | PA | 0,070 | 100 |
| 8203B | 0,5-1 |
|
0,8 | 4,8 | 22,0 | 11,5 | PA | 0,070 | 100 |
| 820 | 0,5-1 |
|
0,8 | 6,3 | 22,0 | 8,0 | PVC | 0,060 | 100 |
| 8302B | 1,5-2,5 |
|
0,5 | 4,8 | 22,0 | 11,5 | PA | 0,070 | 100 |
| 8303B | 1,5-2,5 |
|
0,8 | 4,8 | 22,0 | 11,5 | PA | 0,070 | 100 |
| 830 | 1,5-2,5 |
|
0,8 | 6,3 | 22,0 | 8,0 | PVC | 0,065 | 100 |
| 8502B | 4-6 |
|
0,5 | 4,8 | 24,5 | 10,5 | PA | 0,120 | 100 |
| 8503B | 4-6 |
|
0,8 | 4,8 | 24,5 | 10,5 | PA | 0,120 | 100 |
| 850 | 4-6 |
|
0,8 | 6,3 | 22,0 | 8,0 | PVC | 0,110 | 100 |
