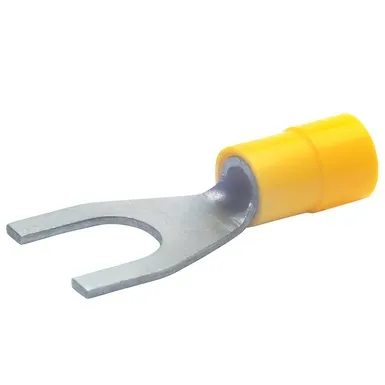

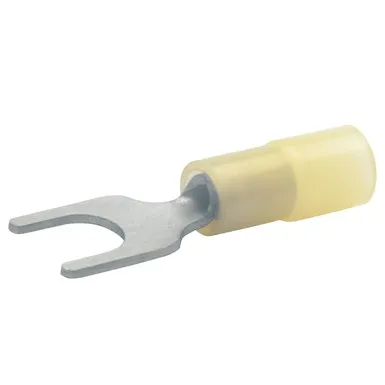

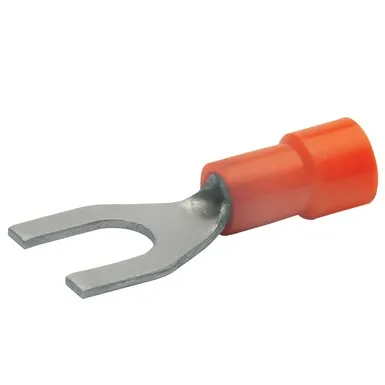

Insulated solderless terminals, fork type

Insulated solderless terminals, fork type
Insulated solderless terminals, fork type
Insulated solderless terminals, fork type
Insulated solderless terminals, fork type
Insulated solderless terminals, fork type
Insulated solderless terminals, fork type
Insulated solderless terminals, fork type
  • For fine and superfine stranded conductors, e.g. to DIN EN 60228 Cl. 5 and 6
  • Dimensions in crimp area according to DIN 46237
  • High-quality brazing process in the crimping area
  • Simple fork-type mounting
  • Insulation sleeve, halogen-free

Features

  • Temperature resistance: up to 105 °C
  • Easy-Entry insulation for simple cable insertion

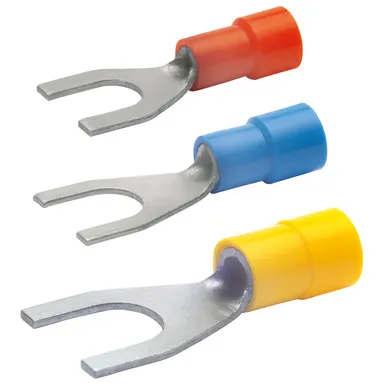

  • Cross-section-dependent colour-coding

Material

  • Copper (ETP)
  • Insulation sleeve: PA

Surface

  • Tin-plated to protect against corrosion

Additional information

  • 0.1 – 0.4 mm² not CSA-tested
  • * = not standardised

Compatibility

Cable type

Cable type Description
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

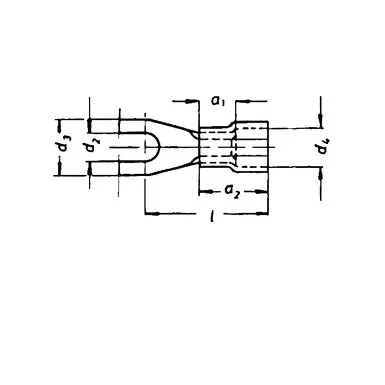

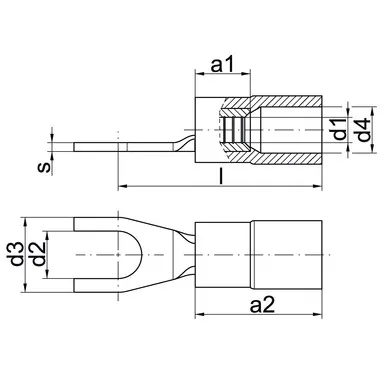

PART NO. Nominal cross-section mm² Nominal size according to DIN Colour Note Dimensions mm Weight/100 pcs. ~kg PU/pcs.
d1 d2 d4 l s d3 a1 a2
619C3 0,1-0,4 —
* — 3,2 — 14,0 0,5 5,0 — — 0,020 100
620C3 0,5-1 3,0-1
– 1,6 3,2 4,5 16,5 0,8 6,0 5 10,5 0,060 100
620C35 0,5-1 3,5-1
– 1,6 3,7 4,5 17,5 0,8 6,8 5 10,5 0,060 100
620C4 0,5-1 4,0-1
– 1,6 4,3 4,5 17,5 0,8 6,8 5 10,5 0,070 100
620C5 0,5-1 5,0-1
– 1,6 5,3 4,5 18,5 0,8 10,0 5 10,5 0,090 100
620C6 0,5-1 —
* 1,6 6,5 4,5 20,5 0,8 11,0 5 10,5 0,080 100
630C3 1,5-2,5 3,0-2,5
– 2,3 3,2 5,1 17,5 0,8 6,0 5 11,5 0,060 100
630C35 1,5-2,5 3,5-2,5
– 2,3 3,7 5,1 18,5 0,8 6,8 5 11,5 0,065 100
630C4 1,5-2,5 4,0-2,5
– 2,3 4,3 5,1 18,5 0,8 6,8 5 11,5 0,080 100
630C5 1,5-2,5 5,0-2,5
– 2,3 5,3 5,1 20,5 0,8 10,0 5 11,5 0,090 100
630C6 1,5-2,5 6,0-2,5
– 2,3 6,5 5,1 22,5 0,8 11,0 5 11,5 0,110 100
650C4 4-6 4,0-6
– 3,6 4,3 6,5 20,5 1,0 8,0 6 12,5 0,140 100
650C5 4-6 5,0-6
– 3,6 5,3 6,5 21,5 1,0 10,0 6 12,5 0,160 100
650C6 4-6 6,0-6
– 3,6 6,5 6,5 22,5 1,0 11,0 6 12,5 0,170 100
650C8 4-6 8,0-6
– 3,6 8,4 6,5 25,5 1,0 14,0 6 12,5 0,220 100
650C10 4-6 10,0-6
– 3,6 10,5 6,5 27,5 1,0 18,0 6 12,5 0,280 100
