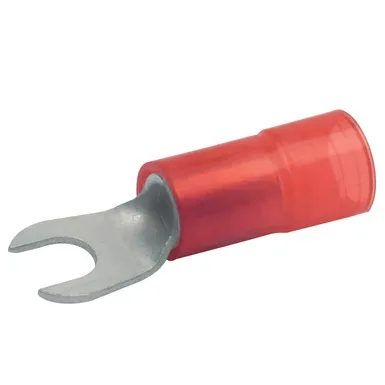

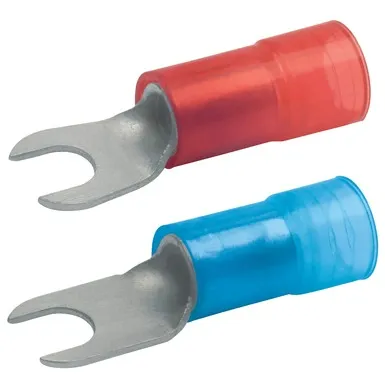

Insulated solderless terminals for meter connections, Cu, fork type

Insulated solderless terminals for meter connections, Cu, fork type

Insulated solderless terminals for meter connections, Cu, fork type

Insulated solderless terminals for meter connections, Cu, fork type

For round conductors, e.g. acc. to EN 60228 Cl. 2, 5 and 6
Special design for meter connection
High-quality brazing process in the crimp area
Fast preparation as no additional insulation of the crimped connection is required
Insulation sleeve, halogen-free

Features

Improved contact properties due to grooved profile
Cross-section-dependent colour-coding
Temperature resistance: up to 105 °C

Material

Insulation sleeve: PA
Copper (EN13599)

Surface

Tin-plated to protect against corrosion

Compatibility

Cable type

Cable type	Description
	Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper.
	Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper
	Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

PART NO.	Nominal cross-section mm²	Colour	Dimensions mm					Weight 100 pcs. ~kg Cu	Weight 100 pcs. ~kg Total	PU/pcs.

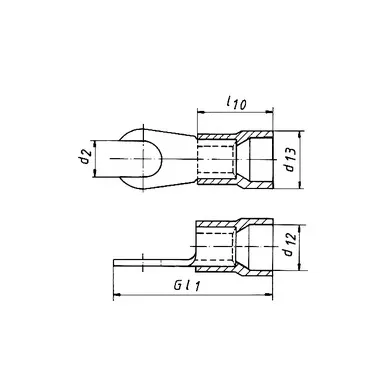

PART NO.	Nominal cross-section mm²	Colour	d12	d13	d2	Gl1	l10	Weight 100 pcs. ~kg Cu	Weight 100 pcs. ~kg Total	PU/pcs.
652C5	10		7,0	9,6	5,3	33,5	19,0	0,24	0,28	100
652C6	10		7,0	9,6	6,4	33,5	19,0	0,26	0,30	100
653C6	16		8,6	10,6	6,4	37,5	20,5	0,35	0,40	100
