Material
Surface
| Cable type | Description |
|---|---|
 |
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

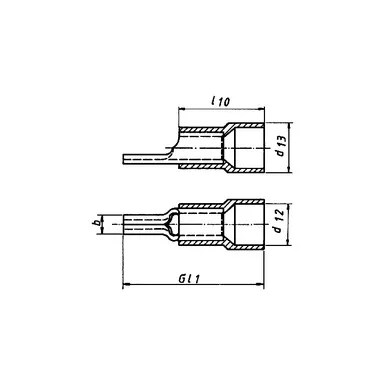

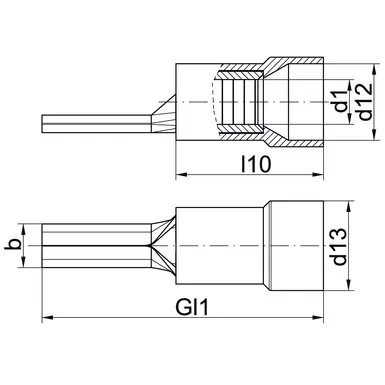

| PART NO. | Nominal cross-section mm² | Colour | Dimensions mm | Weight 100 pcs. ~kg Cu | Weight 100 pcs. ~kg Total | PU/pcs. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | b | d12 | d13 | Gl1 | l10 | ||||||
| ST1716IS | 10 |
|
4,3 | 4,3 | 7,4 | 9,4 | 33,0 | 19,0 | 0,27 | 0,31 | 100 |
| ST1717IS | 16 |
|
5,4 | 5,5 | 8,6 | 10,6 | 38,5 | 20,5 | 0,39 | 0,44 | 100 |
| ST1718IS | 25 |
|
6,7 | 6,8 | 12,5 | 14,5 | 43,5 | 23,5 | 0,63 | 0,73 | 50 |
| ST1719IS | 35 |
|
8,2 | 8,0 | 14,0 | 16,4 | 51,5 | 27,5 | 1,17 | 1,34 | 50 |
| ST1720IS | 50 |
|
9,5 | 9,5 | 15,5 | 18,0 | 59,0 | 33,0 | 1,79 | 2,10 | 50 |
| ST1721IS | 70 |
|
11,2 | 11,0 | 18,0 | 20,5 | 69,0 | 38,0 | 2,92 | 3,20 | 50 |
| ST1722IS | 95 |
|
13,5 | 12,5 | 20,7 | 23,5 | 71,0 | 40,0 | 4,30 | 4,70 | 25 |
