Features

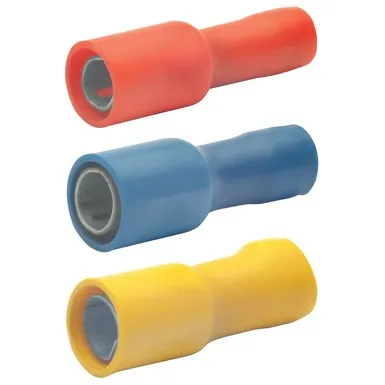

- Cross-section-dependent colour-coding
- Temperature resistance: to 70 °C
Material
- Bronze (CuSnZn)
- Insulation sleeve: PVC
Surface
- Tin plated to protect against corrosion
Additional information
- 1,5 – 2,5 mm² und 4 – 6 mm² nicht CSA geprüft
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to DIN EN 60228) made from bright finish or metal-encased annealed copper |
| PART NO. | Nominal cross-section mm² | Colour | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | |
|---|---|---|---|---|---|---|

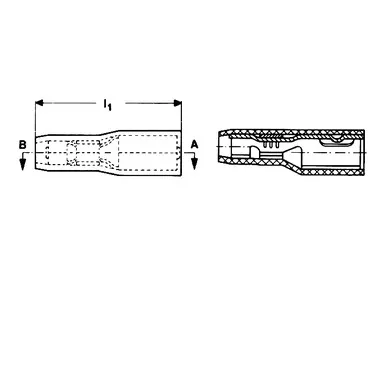

| l1 | Connector dia. | |||||
| 920 | 0,5-1 |
|
22 | 4 | 0,060 | 100 |
| 930 | 1,5-2,5 |
|
22 | 5 | 0,120 | 100 |
| 950 | 4-6 |
|
22 | 5 | 0,125 | 100 |
