Features

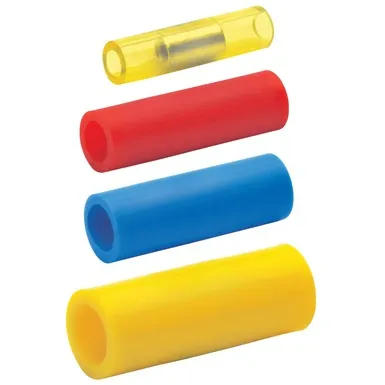

- Cross-section-dependent colour-coding
- Temperature resistance: up to 105 °C
Material
- Copper (ETP)
- Insulation sleeve: PA
Surface
- Tin-plated to protect against corrosion
Additional information
- 0.1 – 0.4 mm² not CSA-tested
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

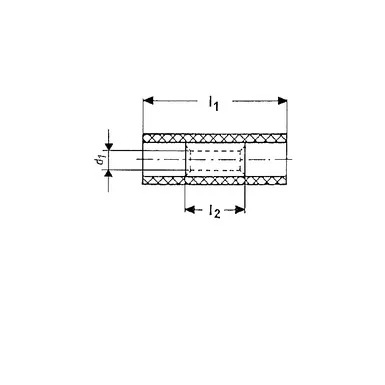

| PART NO. | Nominal cross-section mm² | Colour | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | ||
|---|---|---|---|---|---|---|---|
| d1 | l1 | l2 | |||||
| 769 | 0,1-0,4 |
|
1,2 | 13 | 5 | 0,020 | 100 |
| 770 | 0,5-1 |
|
1,6 | 17 | 7 | 0,030 | 100 |
| 780 | 1,5-2,5 |
|
2,3 | 17 | 7 | 0,035 | 100 |
| 790 | 4-6 |
|
3,6 | 21 | 7 | 0,105 | 100 |
