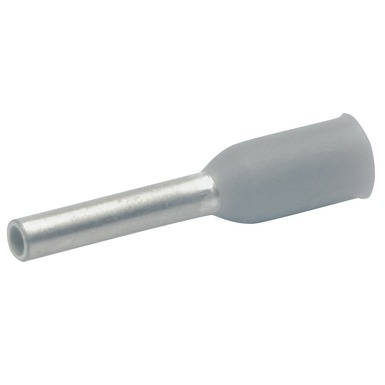

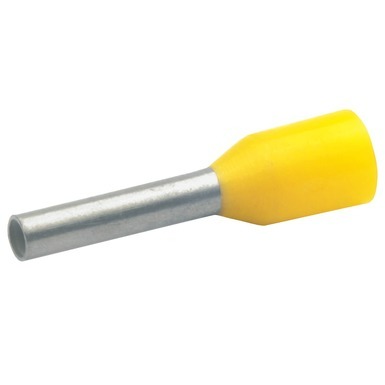

Features
- To DIN 46228, Part 4, (0.5 – 25 mm²)
- Temperature resistance: up to 105 °C
Material
- Plastic: polypropylene
- Cu-DHP
Surface
- Tin-plated to protect against corrosion
Additional information
- ** = quantities in one bag
- * = not standardised
Material
Surface
Additional information
| Cable type | Description |
|---|---|
 |
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper |

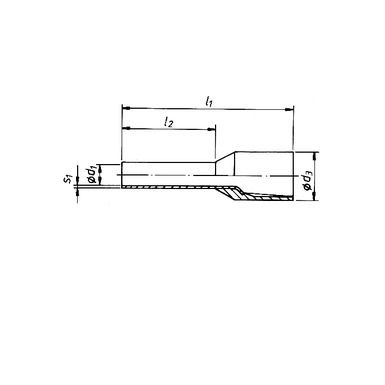

| PART NO. | Nominal cross-section mm² | Colour | Note | Dimensions mm | Weight/1000 pcs. ~kg | PU/pcs. | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| d1 | l1 | l2 | d3 | s1 | ||||||
| 166GR | 0,14 |
|
* | 0,7 | 10,0 | 6 | 2,5 | 0,15 | 0,035 | 1000 |
| 166GRL | 0,14 |
|
* | 0,7 | 12,0 | 8 | 2,5 | 0,15 | 0,040 | 1000 |
| 167H | 0,25 |
|
* | 0,8 | 10,0 | 6 | 2,5 | 0,15 | 0,045 | 1000 |
| 167HL | 0,25 |
|
* | 0,8 | 12,0 | 8 | 2,3 | 0,15 | 0,050 | 1000 |
| 168T | 0,34 |
|
* | 0,8 | 10,0 | 6 | 2,5 | 0,15 | 0,045 | 1000 |
| 168TL | 0,34 |
|
* | 0,8 | 12,0 | 8 | 2,5 | 0,15 | 0,050 | 1000 |
| 1690K | 0,5 |
|
– | 1,0 | 12,0 | 6 | 3,1 | 0,15 | 0,070 | 1000 |
| 170WK | 0,75 |
|
– | 1,2 | 12,0 | 6 | 3,3 | 0,15 | 0,080 | 1000 |
| 170W | 0,75 |
|
– | 1,2 | 14,0 | 8 | 3,3 | 0,15 | 0,080 | 1000 |
| GR170W | 0,75 |
|
** | 1,2 | 14,0 | 8 | 3,3 | 0,15 | 0,080 | 500 |
| 170WH | 0,75 |
|
– | 1,2 | 16,0 | 10 | 3,3 | 0,15 | 0,100 | 1000 |
| 170WL | 0,75 |
|
– | 1,2 | 18,0 | 12 | 3,3 | 0,15 | 0,105 | 1000 |
| 171GK | 1 |
|
– | 1,4 | 12,0 | 6 | 3,5 | 0,15 | 0,090 | 1000 |
| 171G | 1 |
|
– | 1,4 | 14,0 | 8 | 3,5 | 0,15 | 0,100 | 1000 |
| GR171G | 1 |
|
** | 1,4 | 14,0 | 8 | 3,5 | 0,15 | 0,100 | 500 |
| 171GH | 1 |
|
– | 1,4 | 16,0 | 10 | 3,5 | 0,15 | 0,120 | 1000 |
| 171GL | 1 |
|
– | 1,4 | 18,0 | 12 | 3,5 | 0,15 | 0,125 | 1000 |
| 172RK | 1,5 |
|
* | 1,7 | 12,0 | 6 | 4,0 | 0,15 | 0,105 | 1000 |
| 172RO | 1,5 |
|
– | 1,7 | 14,0 | 8 | 4,0 | 0,15 | 0,110 | 1000 |
| GR172RO | 1,5 |
|
** | 1,7 | 14,0 | 8 | 4,0 | 0,15 | 0,110 | 500 |
| 172RH | 1,5 |
|
– | 1,7 | 16,0 | 10 | 4,0 | 0,15 | 0,130 | 1000 |
| 172RM | 1,5 |
|
– | 1,7 | 18,0 | 12 | 4,0 | 0,15 | 0,140 | 1000 |
| 172RL | 1,5 |
|
– | 1,7 | 24,0 | 18 | 4,0 | 0,15 | 0,190 | 1000 |
| 173B | 2,5 |
|
– | 2,2 | 14,0 | 8 | 4,7 | 0,15 | 0,150 | 1000 |
| GR173B | 2,5 |
|
** | 2,2 | 14,0 | 8 | 4,7 | 0,15 | 0,150 | 500 |
| 173BH | 2,5 |
|
– | 2,2 | 18,0 | 12 | 4,7 | 0,15 | 0,200 | 1000 |
| 173BL | 2,5 |
|
– | 2,2 | 24,0 | 18 | 4,7 | 0,15 | 0,250 | 1000 |
| 174GR | 4 |
|
– | 2,8 | 17,0 | 10 | 5,4 | 0,20 | 0,210 | 100 |
| 174GRH | 4 |
|
– | 2,8 | 20,0 | 12 | 5,4 | 0,20 | 0,250 | 100 |
| 174GRL | 4 |
|
– | 2,8 | 26 | 18 | 5,4 | 0,20 | 0,320 | 100 |
| 175S | 6 |
|
– | 3,5 | 20,0 | 12 | 6,9 | 0,20 | 0,350 | 100 |
| 175SL | 6 |
|
– | 3,5 | 26,0 | 18 | 6,9 | 0,20 | 0,460 | 100 |
| 176E | 10 |
|
– | 4,5 | 22,0 | 12 | 8,4 | 0,20 | 0,450 | 100 |
| 176EL | 10 |
|
– | 4,5 | 28,0 | 18 | 8,4 | 0,20 | 0,650 | 100 |
| 177GR | 16 |
|
– | 5,8 | 24,0 | 12 | 9,6 | 0,20 | 0,650 | 100 |
| 177GRL | 16 |
|
– | 5,8 | 28,0 | 18 | 9,6 | 0,20 | 0,800 | 100 |
| 178BR | 25 |
|
– | 7,3 | 30,0 | 16 | 12,0 | 0,20 | 1,600 | 50 |
| 178BRL | 25 |
|
– | 7,3 | 36,0 | 22 | 12,0 | 0,20 | 2,000 | 50 |
| 179B | 35 |
|
– | 8,3 | 30,0 | 16 | 13,5 | 0,20 | 1,900 | 50 |
| 179BL | 35 |
|
– | 8,3 | 39,0 | 25 | 13,5 | 0,20 | 2,500 | 50 |
