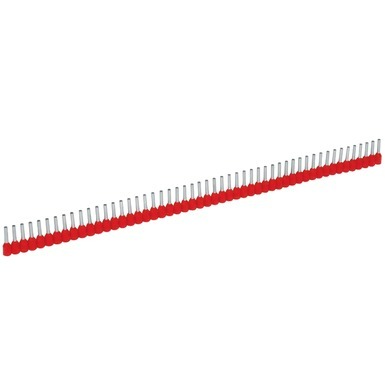

Insulated cable end-sleeves, strip form

Insulated cable end-sleeves, strip form

Insulated cable end-sleeves, strip form

For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
Verpresste Aderendhülsen zur einfachen Montage an Kabelklemmen
Halogenfrei

Features

Farbkodierung und Abmessung nach DIN 46228 Teil 4
Temperaturbeständigkeit: bis 105 °C
50 St. Aderendhülsen pro Streifen

Material:

Kupfer (EN13600)
Kunststoff: Polypropylen

Surface

Tin plated to protect against corrosion

Compatibility

Cable type

Cable type	Description
	Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper
	Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

PART NO.	Nominal cross-section mm²	Colour	Dimensions mm		Weight/1000 pcs. ~kg	PU/pcs.

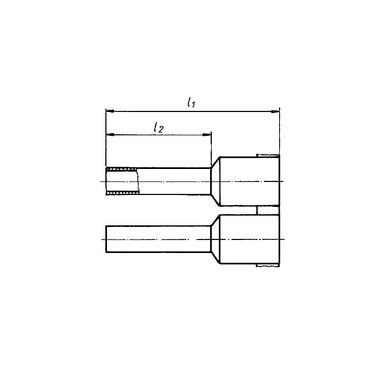

PART NO.	Nominal cross-section mm²	Colour	l1	l2	Weight/1000 pcs. ~kg	PU/pcs.
ST9698	0,5		14	8	0,100	500
ST9708	0,75		14	8	0,100	500
ST9718	1		14	8	0,100	500
ST9728	1,5		14	8	0,100	500
ST9738	2,5		14	8	0,100	500
