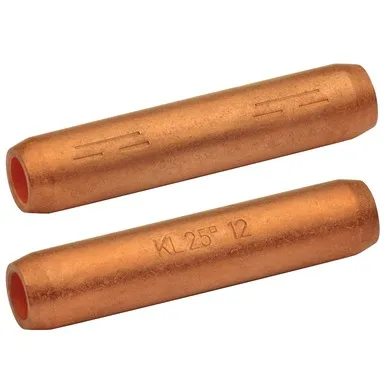

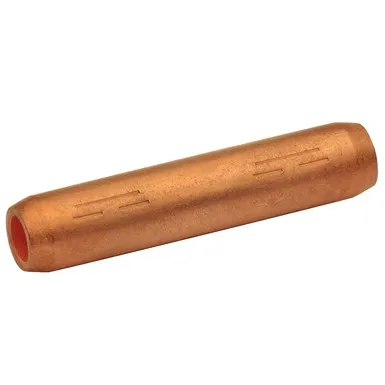

Compression joint for cable connections 10-30 kV, Cu, standard type

Compression joint for cable connections 10-30 kV, Cu, standard type
Compression joint for cable connections 10-30 kV, Cu, standard type
Compression joint for cable connections 10-30 kV, Cu, standard type
  • For round conductors, e.g. acc. to EN 60228 Cl. 1, 2, 5 and 6
  • For non-tension copper cables, e.g. to DIN 48201-1
  • For pre-rounded multi-stranded sector shaped conductors
  • Tube dimension to DIN 46267 part 1
  • For copper medium-voltage cable connections 10 – 30 kV
  • With bevelled edges for reduced winding expenditure in the assembly

Features

  • Also available as barrier design with oil stop
  • Easy to process due to crimp markings
  • Simple cable entry due to precise internal chamfer

suitable for

  • Non-tension connections

Material

  • Copper (EN13600)

Surface

  • Bright

Assembly instruction

  • Reduction sleeves of unequal cross-sections can be found in “Compression joints DIN 46267 part 1 and similar versions / reduction sleeves, Cu 25 – 400 mm²”

Compatibility

Cable type

Cable type Description
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper.
Multi-strand sector conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper
Multi-strand sector conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper
Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper
Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper
Copper cable rope (DIN 48201-1)

Ordering Information

Ordering information

PART NO. Nominal cross-section mm² Code Dimensions mm Number of crimps Weight/100 pcs. ~kg PU/pcs.

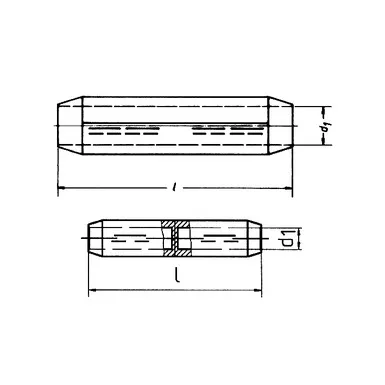

d1 d4 l Cu (5 mm) Cu (wide)
504R 25 12 7,5 12,5 60 2/2 1/1 4,08 10
505R 35 12 8,2 12,5 60 2/2 1/1 3,56 10
506R 50 14 10,0 14,5 65 3/3 1/1 4,90 10
507R 70 16 11,5 16,5 65 3/3 1/1 6,10 10
508R 95 18 13,5 19 90 4/4 2/2 10,98 10
509R 120 20 15,5 21 90 4/4 2/2 12,68 5
510R 150 22 17,0 23,5 105 4/4 2/2 18,09 5
511R 185 25 19,0 25,5 105 4/4 2/2 20,35 5
512R 240 28 21,5 29 125 2/2 31,64 5
513R 300 32 24,5 32 125 2/2 35,40 1
514R 400 38 27,5 38,5 160 3/3 75,42 1
