Features
- Simple and safe connection due to flat contact surfaces and internal chamfer
Material
- Copper (EN13600)
Surface
- Tin-plated to protect against corrosion
Material
Surface
| Cable type | Description |
|---|---|
 |
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper. |

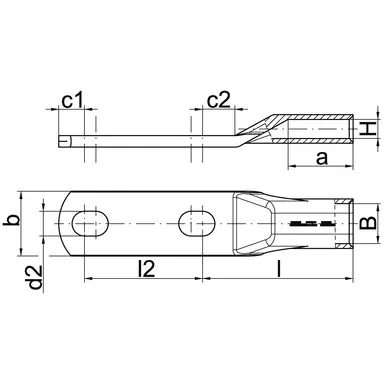

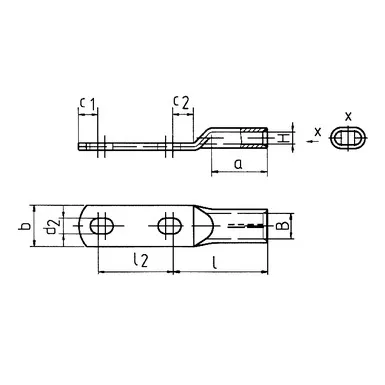

| PART NO. | Nominal cross-section mm² | Conn. bolts dia. | Code | Dimensions mm | H | B | Weight/100 pcs. ~kg | PU/pcs. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | b | d2 | c1 | c2 | l | l2 | ||||||||
| 136DP212 | 2 x 50 | 2 x M 12 | 22 DP | 42 | 34 | 13 | 13,5 | 17 | 79 | 50 – 62 | 10,0 | 20 | 23,20 | 5 |
| 137DP212 | 2 x 70 | 2 x M 12 | 24 DP | 42 | 34 | 13 | 13,5 | 17 | 79 | 50 – 62 | 11,5 | 23 | 29,64 | 5 |
| 138DP212 | 2 x 95 | 2 x M 12 | 29 DP | 47 | 42 | 13 | 13,5 | 18 | 93 | 50 – 62 | 13,5 | 27 | 38,50 | 5 |
| 139DP212 | 2 x 120 | 2 x M 12 | 32 DP | 50 | 48 | 13 | 19 | 22 | 100 | 50 – 62 | 15,5 | 31 | 45,80 | 5 |
