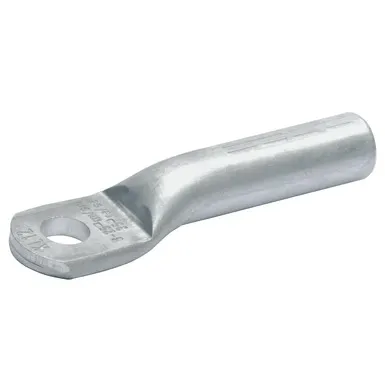

Compression cable lugs, Al

Features

Material

Surface

Additional information

re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, sector shaped conductors must be pre-rounded
16 – 400 mm² IEC-tested

Cable type

Cable type	Description
	Single-strand conductor (Class 1 according to EN 60228) made from aluminium or aluminium alloy
	Single-strand compacted sector-shaped conductor 90° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
	Single-strand compacted sector-shaped conductor 120° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
	Multi-strand conductor (Class 2 according to EN 60228) made from aluminium or aluminium alloy
	Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from aluminium or aluminium alloy
	Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from aluminium or aluminium alloy

Ordering information

PART NO.	Conn. bolts dia.	Nominal cross-section mm²		Code	Dimensions mm						Number of crimps		Weight/100 pcs. ~kg	PU/pcs.

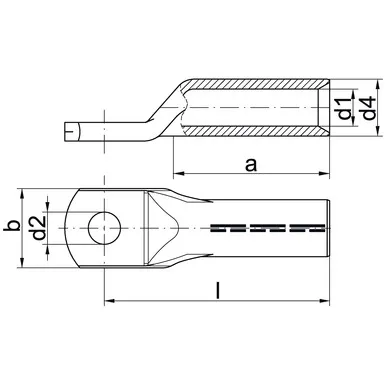

PART NO.	Conn. bolts dia.	rm/sm	re/se	Code	d1	a	b	d2	d4	l	Al (7 mm)	Al (wide)	Weight/100 pcs. ~kg	PU/pcs.
202R6	M 6	10	16	10	5,0	32	16	6,5	10	52	4	2	0,86	25
202R8	M 8	10	16	10	5,0	32	18	8,5	10	52	4	2	0,88	25
203R8	M 8	16	25	12	5,8	32	18	8,5	12	52	4	2	1,37	10
203R10	M 10	16	25	12	5,8	32	18	10,5	12	52	4	2	1,39	10
204R8	M 8	25	35	12	6,8	38	18	8,5	12	60	4	2	1,41	10
204R10	M 10	25	35	12	6,8	38	18	10,5	12	60	4	2	1,46	10
205R10	M 10	35	50	14	8,2	42	21	10,5	14	67	5	2	2,08	10
205R12	M 12	35	50	14	8,2	42	21	13,0	14	67	5	2	2,05	10
206R10	M 10	50	70	16	9,8	45	25	10,5	16	72	5	2	2,68	10
206R12	M 12	50	70	16	9,8	45	25	13,0	16	72	5	2	2,73	10
207R10	M 10	70	95	18	11,2	55	28	10,5	18,5	86	6	3	4,42	10
207R12	M 12	70	95	18	11,2	55	28	13,0	18,5	86	6	3	4,27	10
208R10	M 10	95	120	22	13,2	55	32	10,5	22	90	6	3	7,40	4
208R12	M 12	95	120	22	13,2	55	32	13,0	22	90	6	3	7,50	4
208R16	M 16	95	120	22	13,2	55	34	17,0	22	90	6	3	7,30	4
209R12	M 12	120	150	22	14,7	55	32	13,0	23	91	6	3	6,68	4
209R16	M 16	120	150	22	14,7	55	34	17,0	23	91	6	3	6,41	4
210R12	M 12	150	185	25	16,5	63	35	13,0	25	103	6	3	9,64	4
210R16	M 16	150	185	25	16,5	63	35	17,0	25	103	6	3	9,24	4
212R16	M 16	240	300	32	21,3	70	45	17,0	32	116	8	3	17,60	1
211R12	M 12	185	240	28	18,5	65	40	13,0	28	106	6	3	12,61	1
211R16	M 16	185	240	28	18,5	65	40	17,0	28	106	6	3	11,92	1
212R20	M 20	240	300	32	21,3	70	45	21,0	32	116	8	3	17,30	1
211R20	M 20	185	240	28	18,5	65	40	21,0	28,5	106	6	3	13,10	1
213R16	M 16	300	—	34	23,6	75	49	17,0	34	124	8	3	17,50	1
213R20	M 20	300	—	34	23,6	75	49	21,0	34	124	8	3	17,30	1
212R12	M 12	240	300	32	21,3	70	45	13,0	32	116	8	3	18,30	1
214R16	M 16	400	—	38	26,0	95	58	17,0	38,5	165	—	4	32,20	1
214R20	M 20	400	—	38	26,0	95	58	21,0	38,5	165	—	4	31,90	1
