Compact tap connectors, three conductor cables

Compact tap connectors, three conductor cables
Compact tap connectors, three conductor cables
  • Suitable for main and branch conductors made from Al and Cu
  • No need to cut the main conductor
  • For use e.g. with energy suppliers

Features

  • VDE: can be installed under voltage with corresponding fully insulated assembly tools
  • With threaded pins for the main conductor

Additional information

  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded

Assembly instruction

  • A mounting instruction is included with every clamp

Compatibility

Cable type

Cable type Description
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Single-strand compacted sector-shaped conductor 120° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
Multi-strand compacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively

Ordering Information

Ordering information

PART NO. Main conductor Tap conductor Dimensions mm Thread DIN 13 Weight/pcs. ~kg PU/pcs.

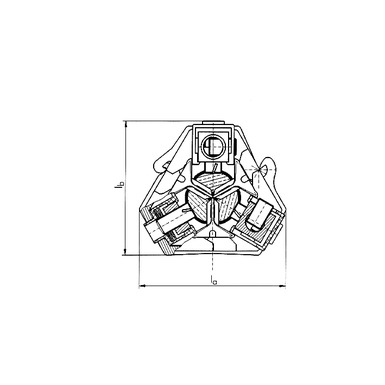

se sm rm re se sm la lb Width Screw circle dia. SW
SKR1503 70 – 150 70 – 150 70 – 150 70 – 150 6 – 70 6 – 95 84 76 45 90 5 M10x1/M10 0,38 1
