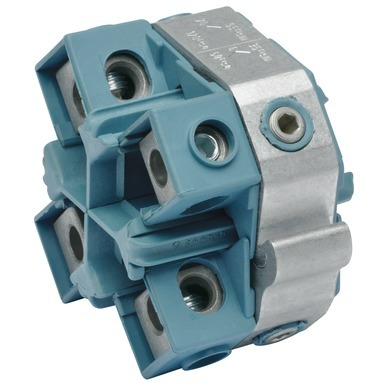

Compact tap connectors, four conductor cables, for main conductor 70-185 mm

Compact tap connectors, four conductor cables, for main conductor 70-185 mm
Compact tap connectors, four conductor cables, for main conductor 70-185 mm
  • Suitable for main and branch conductors made from Al and Cu
  • No need to cut the main conductor
  • For use e.g. with energy suppliers

Features

  • VDE: can be installed under voltage with corresponding fully insulated assembly tools
  • With threaded pins for the main conductor

Additional information

  • Creepage and elongation processes are compensated for by spring washers
  • Sequence of contacting can be freely determined
  • re = round single solid wire, rm = round multi-stranded, se = sector shaped single solid wire, sm = sector shaped multi-stranded, sector shaped conductors must be pre-rounded

Assembly instruction

  • A mounting instruction is included with every clamp

Compatibility

Cable type

Cable type Description
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Single-strand compacted sector-shaped conductor 90° (Class 1 according to EN 60228) made from aluminium or aluminium alloy
Multi-strand compacted conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively
Multi-strand compacted sector-shaped conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper, aluminium or aluminium alloy respectively

Ordering Information

Ordering information

PART NO. Main conductor Tap conductor Cross-section pass mm² rm/re Tap conductor Dimensions mm Torque Nm Weight/pcs. ~kg PU/pcs.

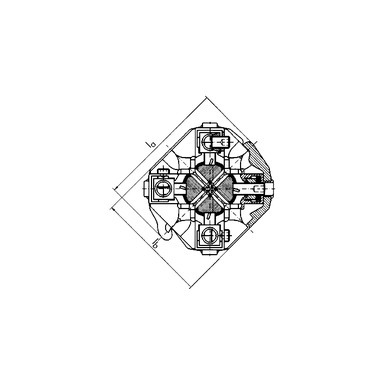

se sm re se sm la lb Width SW
SKR1204 120 70 – 95 – 50 (r) 6 – 35 (r) – 90 77 50 5 20 0,46 1
SKR150504 150 70-150 50 50 6-35 – 93 80 50 5 20 0,46 1
SKR1504 70 – 150 150 – 95 (r) 6 – 70 (r) – 107 90 46 5 20 0,62 1
SKR1501504 95 – 150 150 – 150 16 – 120 16 – 120 118 118 93 5 20 1,34 1
SKR1854 185 95 – 150 – 95 (r) 6 – 70 – 107 96 46 5 20 0,58 1
