Features
Material
- Copper (ETP)
Surface
- Tin-plated to protect against corrosion
Assembly instruction
Additional information
- Part number appendix for bright version “BK”
- rm = round multi-stranded; re = round single solid
Material
Surface
Assembly instruction
Additional information
| Cable type | Description |
|---|---|
 |
Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper |
 |
Copper cable rope (DIN 48201-1) |

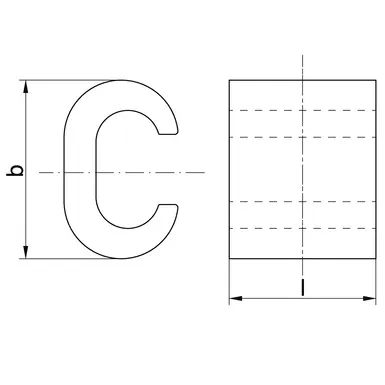

| PART NO. | Cross-section pass mm² rm/re | Dimensions mm | Weight/100 pcs. ~kg | PU/pcs. | ||
|---|---|---|---|---|---|---|
| Pass | Tap conductor | b | l | |||

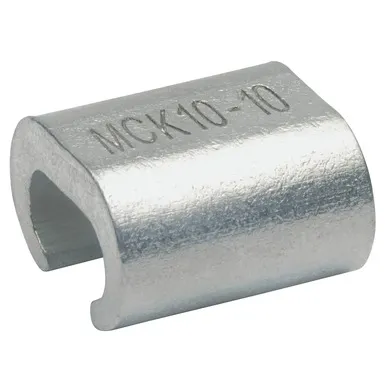

| MCK1010 | 6 – 10/10 | 4 – 6/4 – 10 | 11,8 | 12 | 0,460 | 25 |
| MCK1025 | 16 – 25/25 | 4 – 10/4 – 10 | 19,3 | 17 | 1,900 | 25 |
| MCK3535 | 16 – 25/25 – 35 | 16 – 25/16 – 35 | 20,4 | 17 | 1,750 | 25 |
| MCK2550 | 35/50 | 4 – 25/4 – 25 | 24,6 | 23 | 4,400 | 25 |
| MCK5050 | 35/50 | 16 – 35/25 – 50 | 26,5 | 23 | 4,200 | 25 |
| MCK3570 | 50 – 70/- | 4 – 35/4 – 35 | 33,8 | 28 | 10,700 | 10 |
| MCK3595 | 95/- | 16 – 35 | 41,0 | 30 | 15,000 | 10 |
| MCK7095 | 95/- | 35 – 70 | 41,0 | 30 | 14,000 | 10 |
| MCK120120 | 120/- | 35 – 120 | 45,0 | 30 | 16,550 | 10 |
| MCK150150 | 150/- | 70 – 150 | 53,0 | 35 | 23,000 | 5 |
| MCK185185 | 185/- | 95 – 185 | 60,0 | 40 | 33,000 | 5 |
