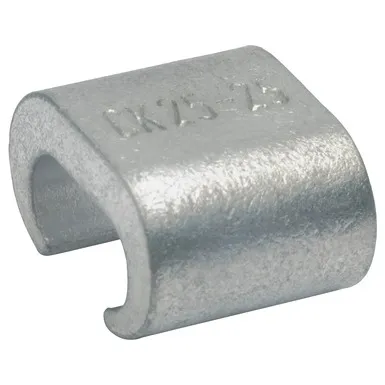

C-type branch clamps, Cu

C-type branch clamps, Cu

C-type branch clamps, Cu

For non-tension copper cables, e.g. to DIN 48201-1
Ideal for clamping identical conductor cross-sections e.g. to DIN EN 60228 Cl. 1 and 2
No need to cut the main conductor

Features

Material

Copper (ETP)

Surface

Tin-plated to protect against corrosion

Additional information

Part Number appendix for bright version “BK”
rm = round multi-stranded; re = round single solid
* = also suitable for 25 mm² round single strand

Assembly instruction

Optimum conducting characteristics in combination with contact grease

Compatibility

Cable type

Cable type	Description
	Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper
	Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper
	Copper cable rope (DIN 48201-1)

Ordering Information

Ordering information

PART NO.	Cross-section pass mm² rm/re		Note	Dimensions mm		Weight/100 pcs. ~kg	PU/pcs.
PART NO.	Pass	Tap conductor	Note	b	l	Weight/100 pcs. ~kg	PU/pcs.
CK16	16/25	16/25	–	16	15	0,94	25
CK25	25/35	25/35	*	20,2	16	1,68	25
CK35	35/50	35/50	–	25,7	22	3,42	25
CK50	50/-	50/-	–	28,0	23	4,88	25
CK70	70/-	70/-	–	34,16	28	9,69	10
CK95	95/-	95/-	–	35,0	25	7,30	10
