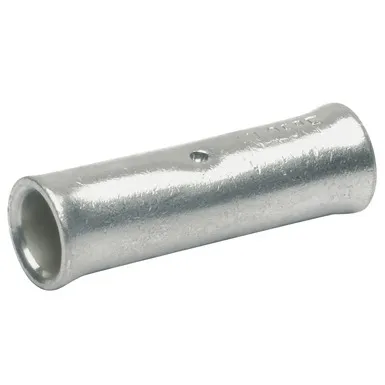

Butt connectors, Cu, F-series

Butt connectors, Cu, F-series

Butt connectors, Cu, F-series

Butt connectors, Cu, F-series

For fine and superfine stranded round conductors, e.g. to EN 60228 Cl. 5 and 6
Pipe dimension adjusted for fine and superfine stranded conductors
Simple introduction of spliced conductors due to special-widening

Features

Simple and safe processing due to butt mark
Simple cable entry due to precise internal chamfer
Reliable tool selection by matching code indication on the butt connector

material

Copper (EN13600)

Surface

Tin-plated to protect against corrosion

Compatibility

Cable type

Cable type	Description
	Fine-strand conductor (Class 5 according to EN 60228) made from bright finish or metal-encased annealed copper
	Extra-fine-strand conductor (Class 6 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

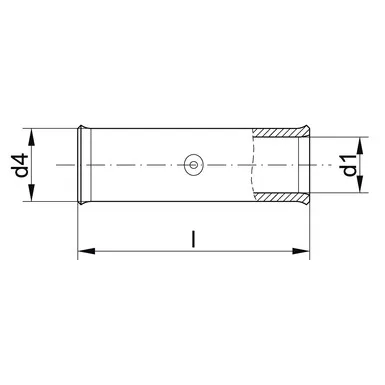

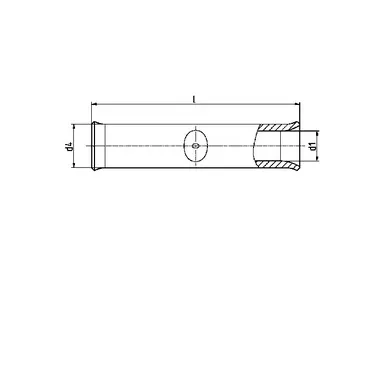

PART NO.	Nominal cross-section mm²	Dimensions mm			Weight/100 pcs. ~kg	PU/pcs.
PART NO.	Nominal cross-section mm²	d1	d4	l	Weight/100 pcs. ~kg	PU/pcs.
722F	10	5,5	8,0	38	0,90	100
723F	16	6,6	9,5	38	1,25	100
724F	25	7,9	11,0	38	1,56	50
725F	35	9,2	12,5	45	2,19	50
726F	50	11,0	15,0	45	3,37	50
727F	70	13,0	17,0	54	4,65	50
728F	95	14,5	19,0	56	6,05	25
729F	120	16,2	21,0	60	7,58	25
730F	150	18,0	23,0	68	9,83	10
731F	185	20,6	26,0	75	13,28	10
