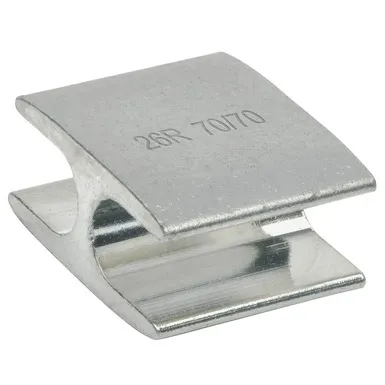

Branch clamps in H-type, Cu

Branch clamps in H-type, Cu

Branch clamps in H-type, Cu

Branch clamps in H-type, Cu

For non-tension copper cables, e.g. acc. to DIN 48201-1
Ideal for clamping identical conductor cross-sections e.g. acc. to EN 60228 Cl. 1 and 2
Lightning protection tested to EN 50164-1
No need to cut the main conductor

Features

H-shape allows simple processing
Optimum conducting characteristics in combination with contact grease

Material

Copper (ETP)

Surface

Tin-plated to protect against corrosion

Additional information

Part Number appendix for bright version “BK”
* = To EN 50164-1 lightning current tested

Compatibility

Cable type

Cable type	Description
	Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper
	Copper cable rope (DIN 48201-1)
	Single-strand conductor (Class 1 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

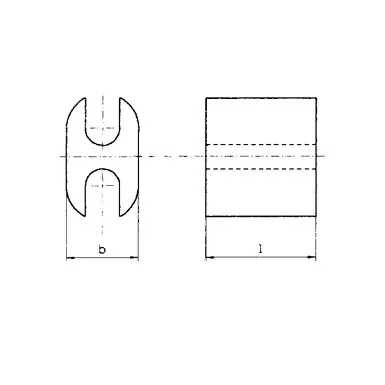

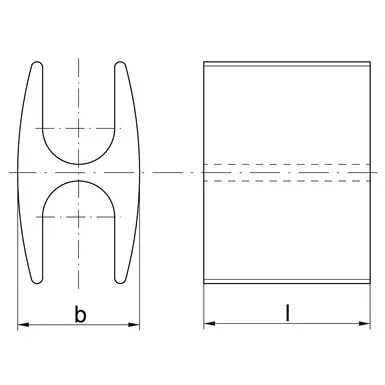

PART NO.	Cross-section pass mm² rm/re		Note	Dimensions mm		Weight/100 pcs. ~kg	PU/pcs.
PART NO.	Pass	Tap conductor	Note	b	l	Weight/100 pcs. ~kg	PU/pcs.
AH7070	70	70	*	17,0	28,0	6,5	25
AH9595	95	95	–	22,0	30,0	10,0	25
AH120120	120	120	–	24,0	25,0	9,8	25
