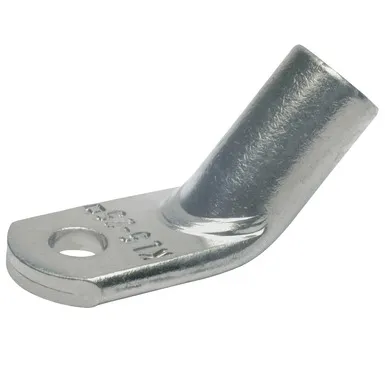

Angled tubular cable lugs, Cu, 45° offset, standard type

Angled tubular cable lugs, Cu, 45° offset, standard type
  • For multi-stranded round conductors, e.g. to DIN 60228 Cl. 2
  • For pre-rounded multi-stranded sector shaped conductors
  • Flat contact surface by special angle pressing technology
  • In combination with EKM 60 ID and EK 30 ID suitable for fine-stranded conductor

Features

  • Simple cable entry due to precise internal chamfer
  • Reliable assignment owed to item designation on the cable lug

material

  • Copper (EN13600)

Surface

  • Tin-plated to protect against corrosion

Additional information

  • Also available with inspection hole as a special version, Part Number appendix “MS”

Assembly instruction

  • For more information on wire and cable designations, see page i-6
  • Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter “Sleeves for compacted conductors and sector shaped conductors – Cu”

Compatibility

Cable type

Cable type Description
Multi-strand conductor (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper.
Multi-strand sector conductor 90° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper
Multi-strand sector conductor 120° (Class 2 according to EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information

PART NO. Nominal cross-section mm² Conn. bolts dia. Dimensions mm Weight/100 pcs. ~kg PU/pcs. 3D Models
d1 a b d2 d4 c1 l3
41R545 6 M5 3,5 9 10 5,5 6,5 7,5 9 0,60 50  3D Model
41R645 6 M6 3,5 9 12 6,4 6,5 7,5 10 0,58 50  3D Model
41R845 6 M8 3,5 9 14 8,4 6,5 10,0 13 0,68 50  3D Model
41R1045 6 M10 3,5 9 17 10,5 6,5 12,0 15 0,70 50  3D Model
41R1245 6 M12 3,5 9 19 13,0 6,5 13,0 17 0,70 50  3D Model
42R545 10 M5 4,5 10 12 5,5 7,0 6,5 10 0,57 50  3D Model
42R645 10 M6 4,5 10 12 6,4 7,0 6,5 10 0,57 50  3D Model
42R845 10 M8 4,5 10 15 8,4 7,0 10,0 13 0,63 50  3D Model
42R1045 10 M10 4,5 10 17 10,5 7,0 12,0 15 0,68 50  3D Model
42R1245 10 M12 4,5 10 19 13,0 7,0 13,0 18 0,68 50  3D Model
43R545 16 M5 5,5 13 12 5,5 8,5 7,5 10 1,01 50  3D Model
43R645 16 M6 5,5 13 12 6,5 8,5 7,5 11 1,06 50  3D Model
43R845 16 M8 5,5 13 15 8,4 8,5 10,0 13 1,15 50  3D Model
43R1045 16 M10 5,5 13 17 10,5 8,5 12,0 15 1,09 50  3D Model
43R1245 16 M12 5,5 13 19 13,0 8,5 13,0 18 1,15 50  3D Model
44R545 25 M5 7,0 15 14 5,5 10,0 7,5 11 1,40 25  3D Model
44R645 25 M6 7,0 15 14 6,4 10,0 7,5 11 1,32 25  3D Model
44R845 25 M8 7,0 15 16 8,4 10,0 10,0 13 1,44 25  3D Model
44R1045 25 M10 7,0 15 18 10,5 10,0 12,0 15 1,49 25  3D Model
44R1245 25 M12 7,0 15 19 13,0 10,0 13,0 18 1,44 25  3D Model
44R1445 25 M14 7,0 15 21 15,0 10,0 14,5 20 1,55 25  3D Model
45R645 35 M6 8,5 17 17 6,4 12,0 7,5 11 2,05 25  3D Model
45R845 35 M8 8,5 17 17 8,4 12,0 10,0 13 2,20 25  3D Model
45R1045 35 M10 8,5 17 19 10,5 12,0 12,0 15 2,28 25  3D Model
45R1245 35 M12 8,5 17 21 13,0 12,0 13,0 18 2,38 25  3D Model
45R1645 35 M16 8,5 17 26 17,0 12,0 16,0 22 2,40 25  3D Model
46R645 50 M6 10,0 19 20 6,4 14,0 10,0 13 3,43 25  3D Model
46R845 50 M8 10,0 19 20 8,4 14,0 10,0 13 3,28 25  3D Model
46R1045 50 M10 10,0 19 20 10,5 14,0 12,0 16 3,47 25  3D Model
46R1245 50 M12 10,0 19 23 13,0 14,0 13,0 18 3,42 25  3D Model
46R1645 50 M16 10,0 19 28 17,0 14,0 16,0 22 3,76 25  3D Model
47R645 70 M6 12,0 21 23 6,4 16,5 10,0 13 5,06 25  3D Model
47R845 70 M8 12,0 21 23 8,4 16,5 10,0 14 5,06 25  3D Model
47R1045 70 M10 12,0 21 23 10,5 16,5 12,0 16 5,25 25  3D Model
47R1245 70 M12 12,0 21 23 13,0 16,5 13,0 18 5,30 25  3D Model
47R1445 70 M14 12,0 21 23 15,0 16,5 14,5 20 5,60 25  3D Model
47R1645 70 M16 12,0 21 28 17,0 16,5 16,0 22 5,61 25  3D Model
47R2045 70 M20 12,0 21 30 21,0 16,5 19,0 24 5,60 25  3D Model
48R845 95 M8 13,5 25 26 8,4 18,0 12,0 14 6,19 25  3D Model
48R1045 95 M10 13,5 25 26 10,5 18,0 12,0 17 5,70 25  3D Model
48R1245 95 M12 13,5 25 26 13,0 18,0 13,0 18 6,67 25  3D Model
48R1645 95 M16 13,5 25 28 17,0 18,0 16,0 22 6,78 25  3D Model
48R2045 95 M20 13,5 25 36 21,0 18,0 22,0 24 6,80 25  3D Model
49R845 120 M8 15,0 26 28 8,4 19,5 14,0 16 7,92 10  3D Model
49R1045 120 M10 15,0 26 28 10,5 19,5 14,0 17 7,99 10  3D Model
49R1245 120 M12 15,0 26 28 13,0 19,5 14,0 18 7,96 10  3D Model
49R1445 120 M14 15,0 26 28 15,0 19,5 15,0 20 7,94 10  3D Model
49R1645 120 M16 15,0 26 30 17,0 19,5 16,0 22 8,26 10  3D Model
50R845 150 M8 16,5 30 31 8,4 21,0 14,0 16 9,00 10  3D Model
50R1045 150 M10 16,5 30 31 10,5 21,0 14,0 17 9,15 10  3D Model
50R1245 150 M12 16,5 30 31 13,0 21,0 15,0 18 8,75 10  3D Model
50R1445 150 M14 16,5 30 31 15,0 21,0 15,0 20 9,20 10  3D Model
50R1645 150 M16 16,5 30 31 17,0 21,0 16,0 22 9,22 10  3D Model
51R1045 185 M10 19,0 30 35 10,5 24,0 18,0 22 13,30 10  3D Model
51R1245 185 M12 19,0 30 35 13,0 24,0 18,0 22 13,32 10  3D Model
51R1445 185 M14 19,0 30 35 15,0 24,0 18,0 22 13,40 10  3D Model
51R1645 185 M16 19,0 30 35 17,0 24,0 18,0 22 12,80 10  3D Model
51R2045 185 M20 19,0 30 39 21,0 24,0 22,0 24 13,10 10  3D Model
52R1045 240 M10 21,0 35 39 10,5 26,0 21,5 22 16,28 10  3D Model
52R1245 240 M12 21,0 35 39 13,0 26,0 21,5 22 16,80 10  3D Model
53R1245 300 M12 23,5 44 43 13,0 29,5 24,0 24 24,08 5  3D Model
53R1445 300 M14 23,5 44 43 15,0 29,5 24,0 24 24,20 5  3D Model
53R1645 300 M16 23,5 44 43 17,0 29,5 24,0 24 23,23 5  3D Model
54R1245 400 M12 27,0 44 49 13,0 34,0 24,0 24 34,00 5  3D Model
54R1445 400 M14 27,0 44 49 15,0 34,0 24,0 24 33,40 5  3D Model
54R1645 400 M16 27,0 44 49 17,0 34,0 24,0 24 34,28 5  3D Model
