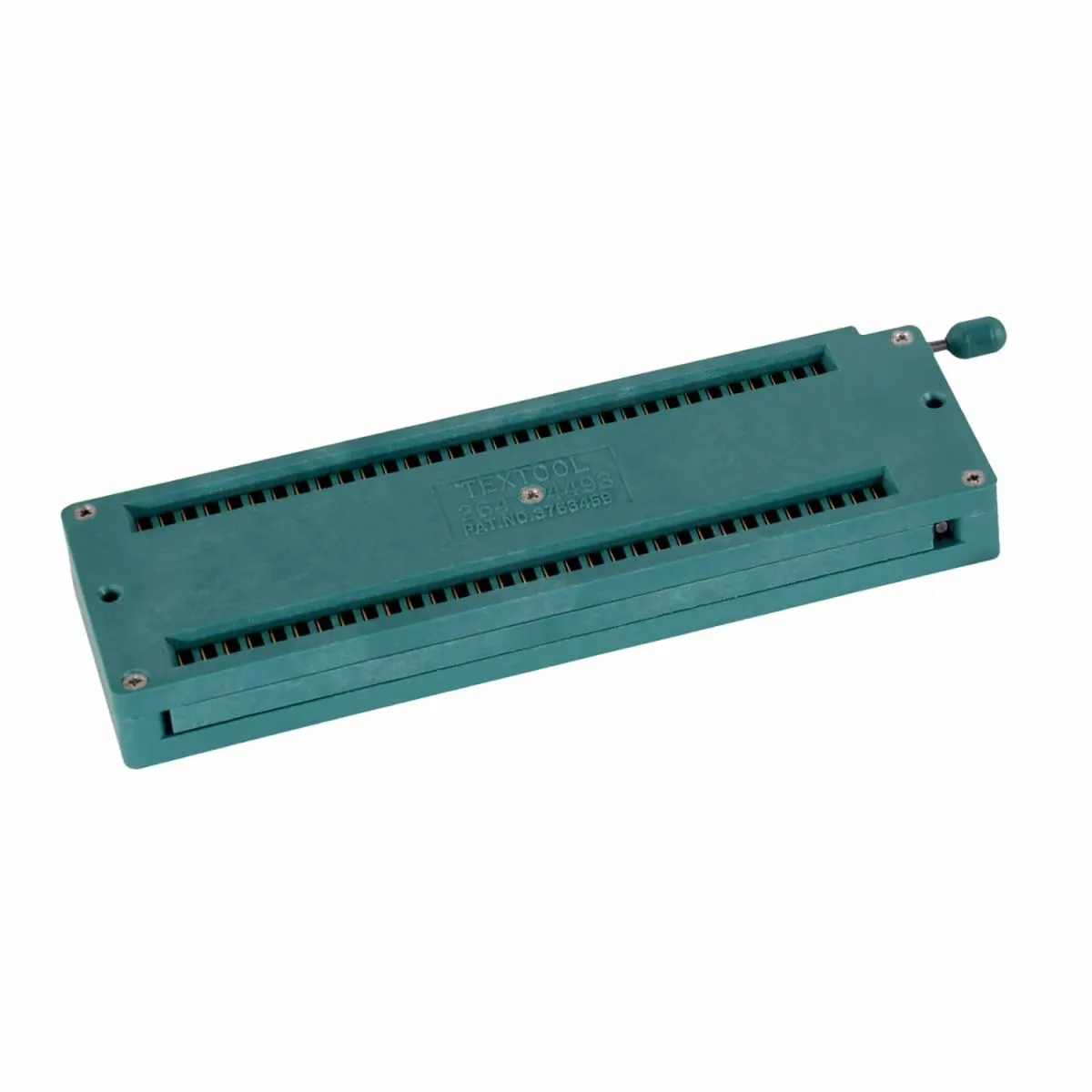

3M™ Textool™ ZIP DIP Sockets

For DIPs with .100″ (2.54 mm) lead spacing

Pin counts for 14-64 leads

Lever actuated zero insertion force mechanism

For DIPs with .100″ (2.54 mm) lead spacing
Pin counts for 14-64 leads
Lever actuated zero insertion force mechanism
Socket easily disassembles for repairability
Socket contact point of .110″ (2.79 mm) below top surface of socket
For more Information refer to Data Sheet TS0365 (TS-0365)
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information. Paragraphs E1 and C1 apply

.100″ (2.54 mm) ZIP, pin count (14 to 64 leads)

3M™ Textool™ DIP socket has a contact point of .100 in. below top surface and is designed with a lever actuated zero insertion force mechanism.
