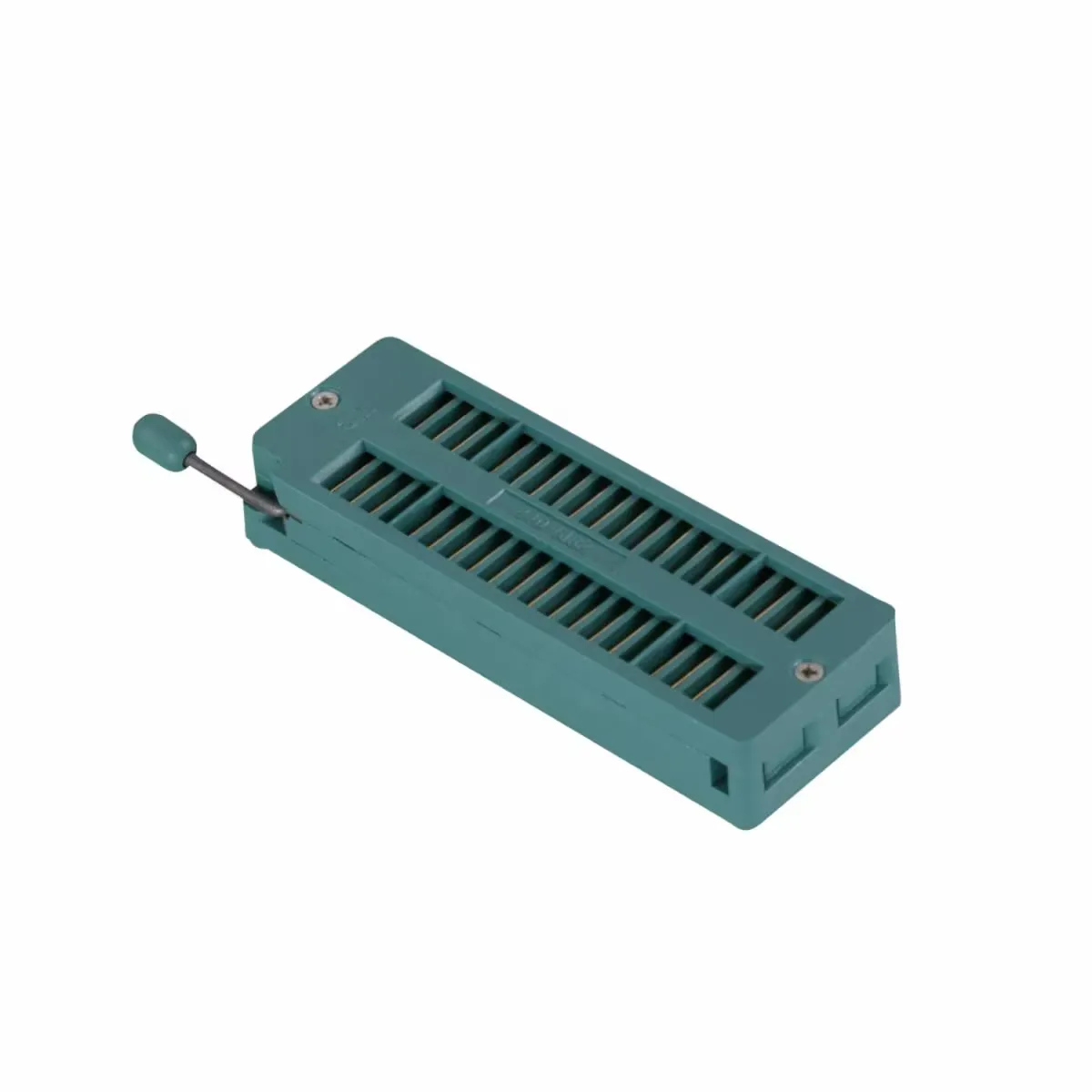

3M™ Textool™ Universal DIP Sockets

For DIP’s with .100″ (2.54 mm) lead spacing

Extra wide contact zone allows insertion of DIP’s with distance between rows from .300″ (7.62 mm) through .600″ (15.24 mm)

Lever actuated zero insertion force mechanism

For DIP’s with .100″ (2.54 mm) lead spacing
Extra wide contact zone allows insertion of DIP’s with distance between rows from .300″ (7.62 mm) through .600″ (15.24 mm)
Lever actuated zero insertion force mechanism
Socket contact point of .090″ (2.29 mm) below top surface of socket
For more Information refer to Data Sheet TS0392 (TS-0392)

.100″ (2.54 mm) Universal
