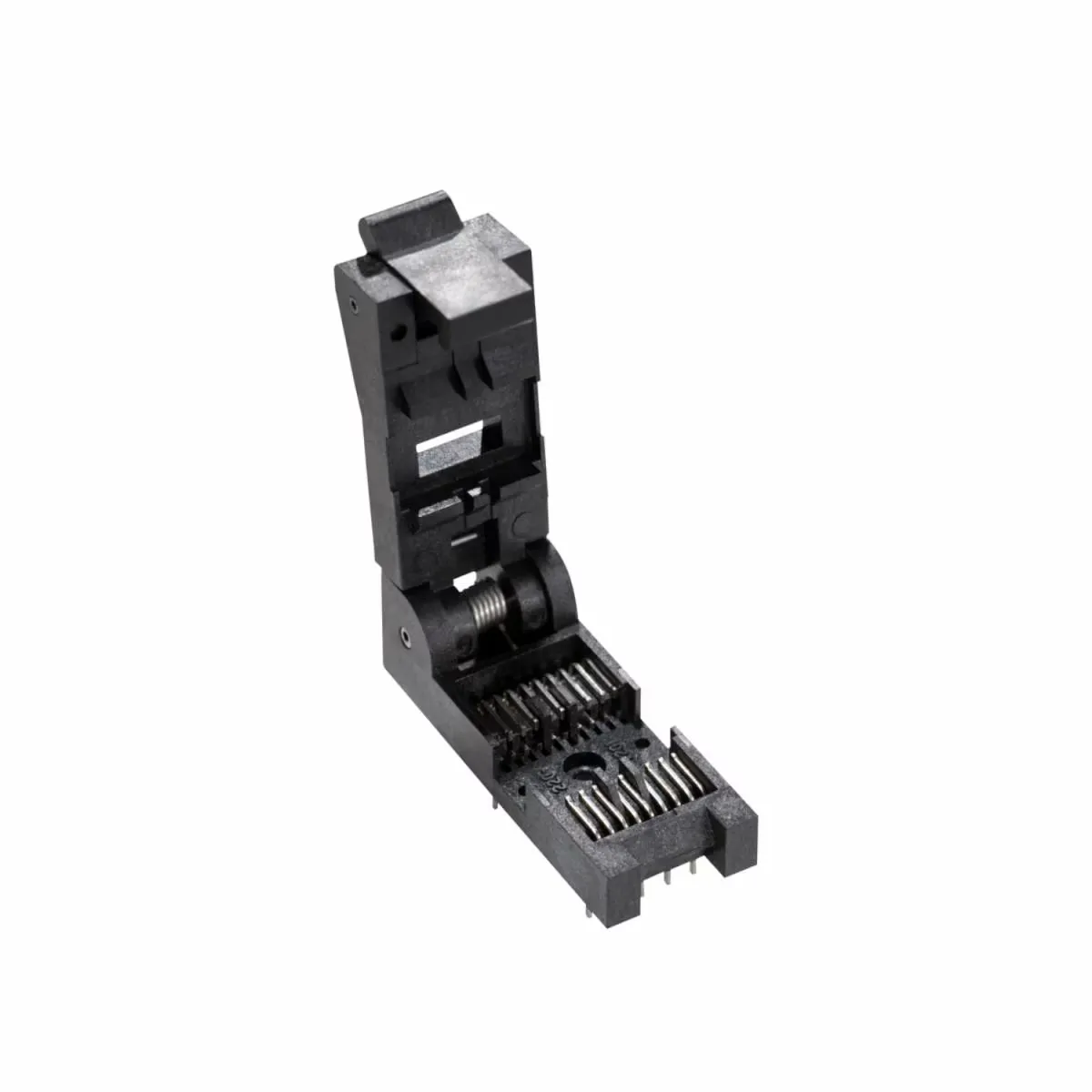

3M™ Textool™ Test & Burn-In SOIC Sockets

Lid can be actuated from top or front and is compatible with automated load/unload equipment

Compact envelope and side to side stackability maximize board density

Tweezer slot for easy manual loading/unloading

Lid can be actuated from top or front and is compatible with automated load/unload equipment
Compact envelope and side to side stackability maximize board density
Tweezer slot for easy manual loading/unloading
Lid applies 80 grams normal force per lead for maximum electrical reliability
Accepts Gull Wing JEDEC device sizes in .150″ (3.81 mm) and .300″ (7.62 mm) body widths
For more Information refer to Data Sheet TS0338 (TS-0338)

Compact envelope w/ tweezer slot for easy loading

Factory ISO Certification	No ISO Certification information available
Frame Style	Clamshell
Number of Positions	8 , 14 , 16 , 18 , 20 , 24 , 28
PCB Mounting Style	Through Hole
Tech Sheet Number	TS-0338
