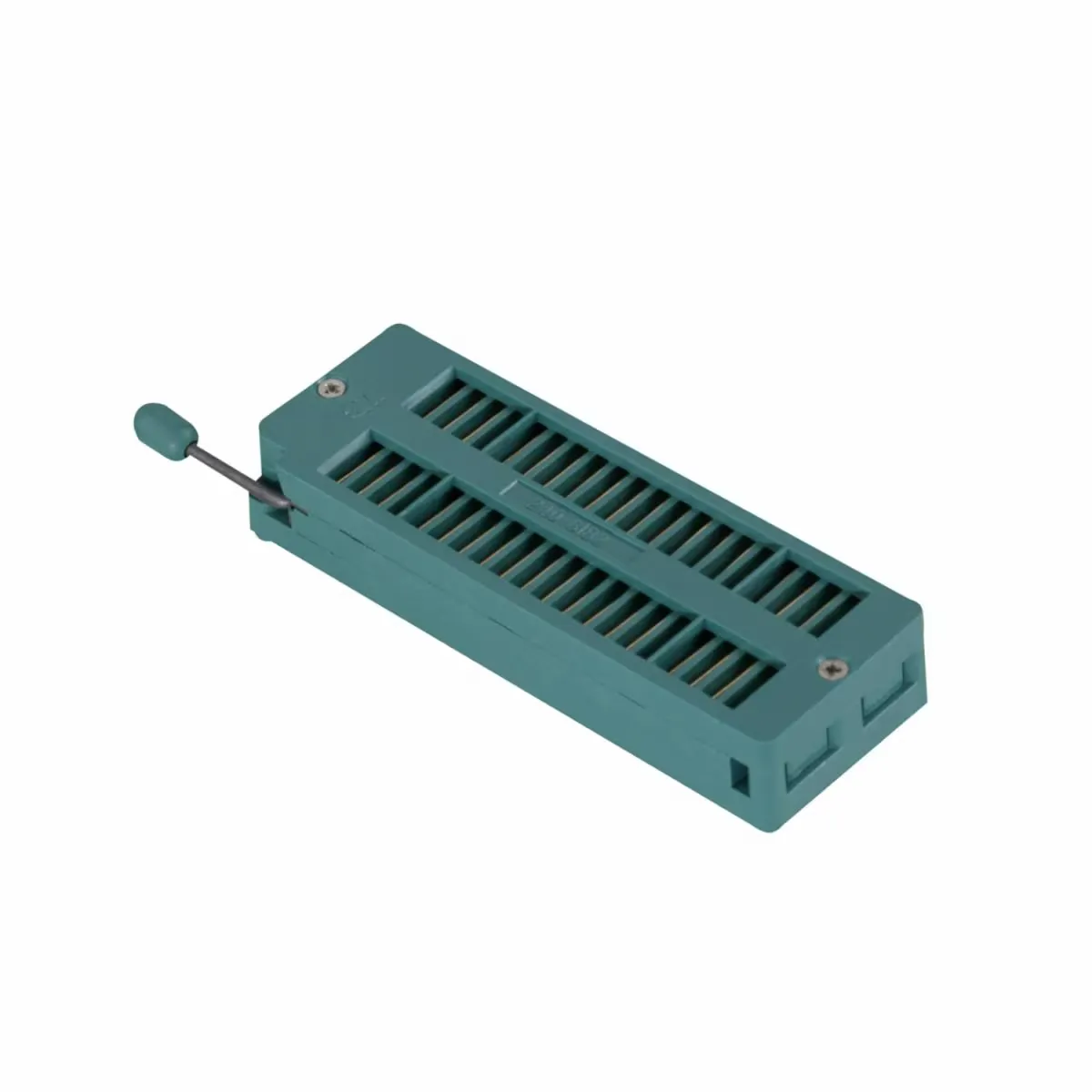

3M™ Textool™ Shrink DIP Sockets

3M™ Textool™ Shrink DIP Sockets

For DIPs with .070″ (1.78 mm) lead spacing

Pin counts from 28 through 90 leads

Lever actuated zero insertion force mechanism

Highlights
  • For DIPs with .070″ (1.78 mm) lead spacing
  • Pin counts from 28 through 90 leads
  • Lever actuated zero insertion force mechanism
  • Socket contact point of .090″ (2.29 mm) below top surface of socket
  • For more Information refer to Data Sheet TS0366 (TS-0366)

.070″ Shrink, pin count (28 to 90 leads)

Typical properties

Details

Frame Style

ZIP Socket

Number of Positions

28 , 32 , 42 , 56 , 64 , 90

PCB Mounting Style

Through Hole

Tech Sheet Number

TS-0366
