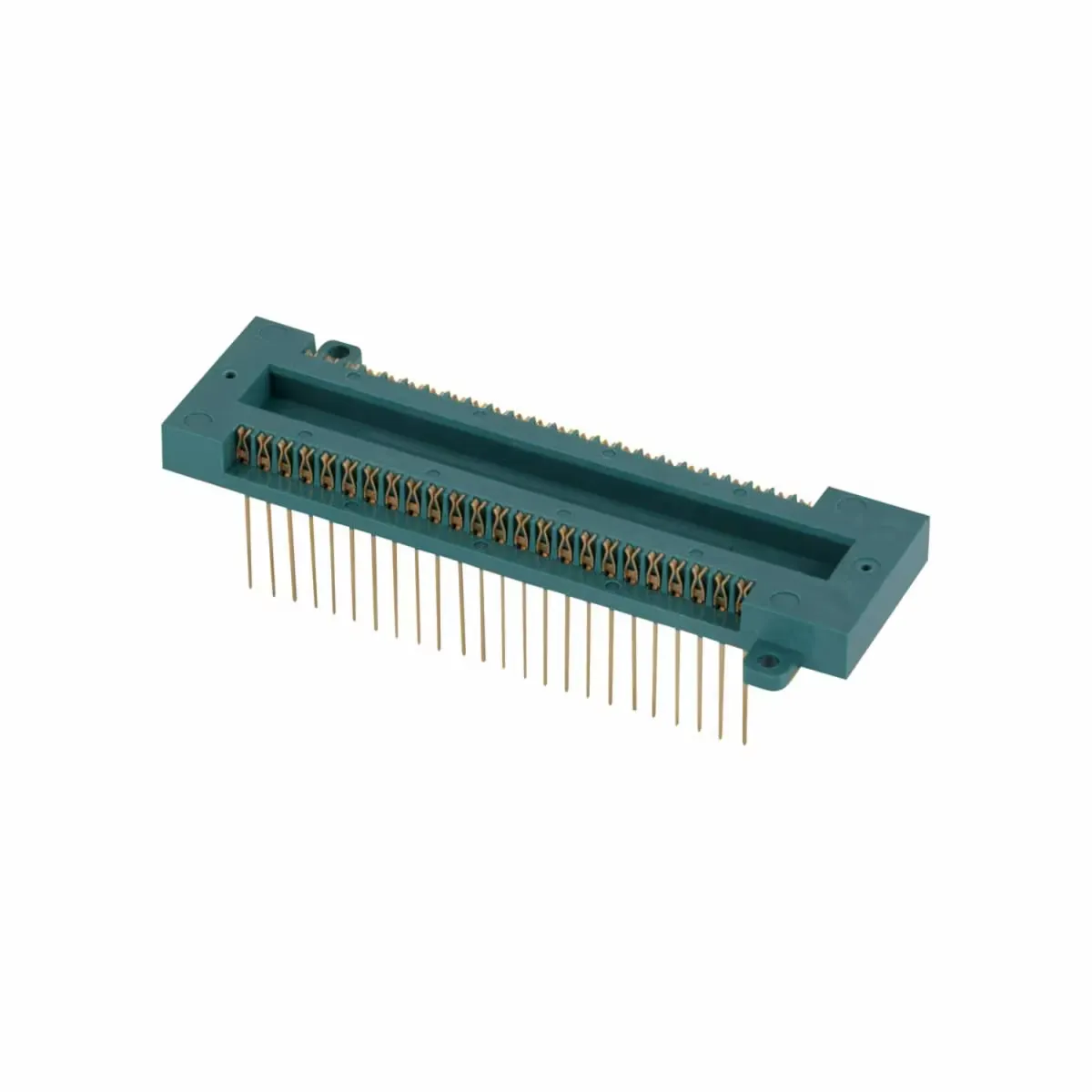

3M™ Textool™ Receptacles for DIP Sockets

3M™ Textool™ Receptacles for DIP Sockets

Matching receptacle for every ZIP DIP Socket, including “Universal DIP” and “Shrink DIP”

Mounting flanges hold receptacle to board

Pre-tapped holes in receptacle body mate with screw-hole in socket to hold socket firmly to receptacle (2 screws provided with each receptacle)

Highlights
  • Matching receptacle for every ZIP DIP Socket, including “Universal DIP” and “Shrink DIP”
  • Mounting flanges hold receptacle to board
  • Pre-tapped holes in receptacle body mate with screw-hole in socket to hold socket firmly to receptacle (2 screws provided with each receptacle)
  • Available in wire-wrap and solder-tail options, with and without mounting flanges
  • For more information refer to Data Sheet TS0454 (TS-0454)

3M™ Textool™ Receptacles for DIP Sockets offer a Matching receptacle for every ZIP DIP Socket, including “Universal DIP” and “Shrink DIP”. Provided Mounting flanges hold receptacle to board. Available in wire-wrap and solder-tail options, with and without mounting flanges.

Typical properties

Details

Frame Style

ZIP Socket

Number of Positions

14 , 16 , 18 , 20 , 22 , 24 , 28 , 32 , 40 , 42 , 48 , 64

PCB Mounting Style

Through Hole

Tech Sheet Number

TS-0362, TS-0454
