Unique C-Spring contact insures balanced forces
Compatible with .025″ pins
10 and 30 micro inch gold plating options

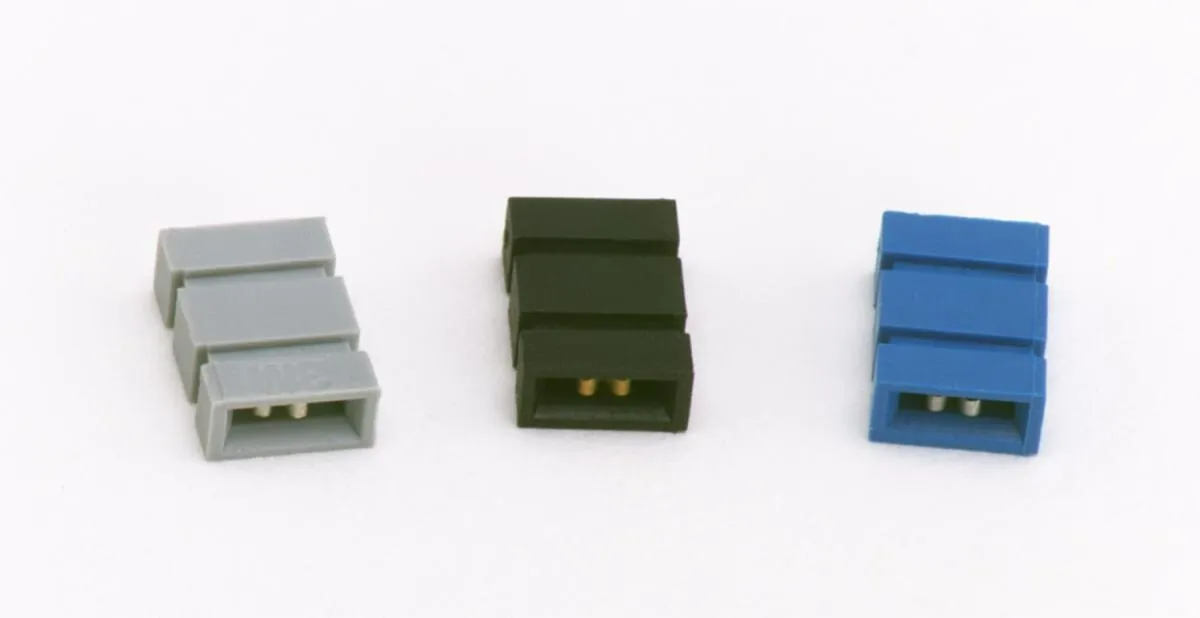

3M™ Pak 100 Shunt, 92995X Series, .100 in Midgie, Unique C-Spring contact
|
Contact Base Material |
Copper Alloy |
|
Contact Underplating |
50 µ” [1.27 µm] Nickel |
|
Contact Wiping Area Plating |
10 µ” [0.25 µm] Gold, 30 µ” [0.76 µm] Gold |
|
Flammability |
UL 94V-0 |
|
Insulation Color |
Gray, Blue |
|
Insulation Flammability Rating |
UL 94V-0 |
|
Insulation Material |
Glass Filled Polyester (PBT) |
|
Insulation Resistance |
>1×10⁹ Ω @ 500 VDC |
|
Interface Style |
Rectangular Socket |
|
Markings |
3M Logo |
|
Mounting Type |
Boardmount |
|
Non-Operating Temperature |
-55 to 100 Degree Celsius |
|
Number of Positions |
2 |
|
Pitch (Imperial) |
0.1 in |
|
Pitch (Metric) |
2.54 mm |
|
Separable |
Yes |
|
Tech Sheet Number |
TS-0200 |
